Polarizing filters test

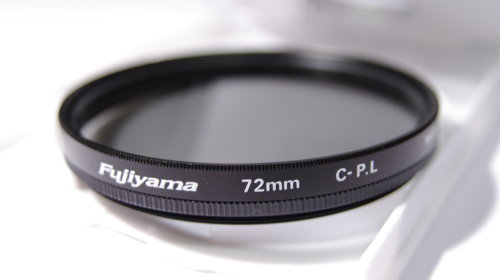

13. Fujiyama Digital C-PL E 72 mm
 |
||
 |
||
Fujiyama is a brand belonging to Marumi. Products of this company are valued by photographers on account of good price/quality ratio. Filters with DHG symbol are equipped with improved antireflection coatings and the glass edges are blackened to avoid internal reflections.
Results of the test
Red color extinction coefficient: 4.69E-4 - Score: 3.5/4
Green color extinction coefficient: 5.90E-4 - Score: 3/4 Blue color extinction coefficient: 2.50E-2 - Score: 0.5/4 Mean transmission of the whole spectrum: 31.39% - Score: 1.28/3 Score:
|
|
||
With filter Score:
|
|
||
Luminance: 15.3
Score:
|
|
||

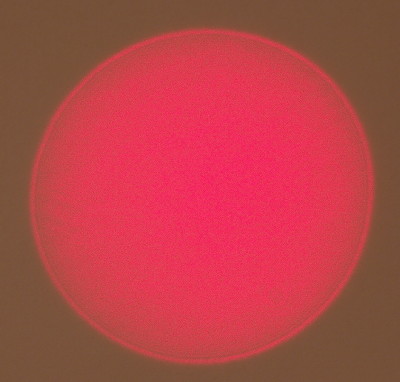

| Edge darkening: 5.1% Score: |
|
||

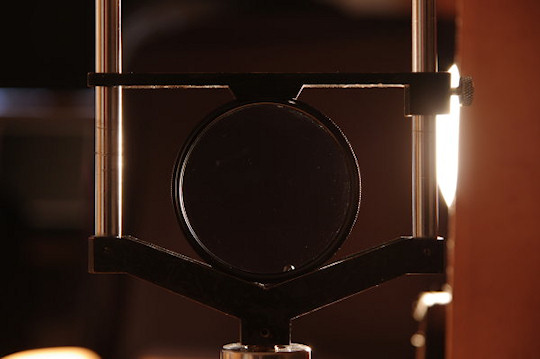

Slight streakiness
Score:
|
|
||
|
|||
Usage
The ring turns smoothly. Cleaning isn’t troublesome. The wide ring allows convenient work.
Summary

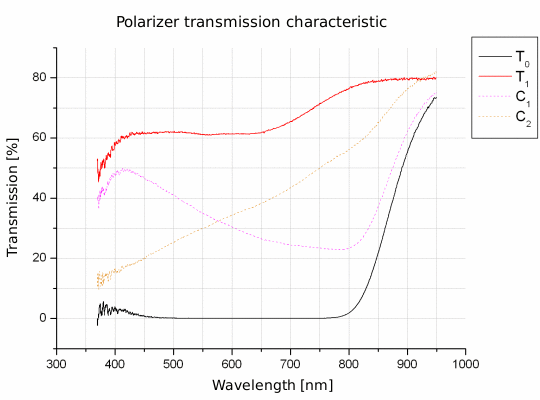

15th place in the overall ranking (23/37.5)The transmission curve is flat at 60% and rises for red color over 650 nm. This may warm the pictures. The extinction coefficient of around 0.5/1000 is good for a foil polarizer. Violet color isn’t entirely extinguished here either. C1 and C2 graphs indicate that we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum. The distant position is a combination of poor transmission, flares and vignetting. Antireflection coatings and a slim ring are missing.
Filter for tests was lent by Fotozakupy.pl
