Polarizing filters test

10 August 2009
Szymon Starczewski

5. B+W C-POL MRC 72 mm

Polarizing filters test - B+W C-POL MRC 72 mm
Polarizing filters test - B+W C-POL MRC 72 mm

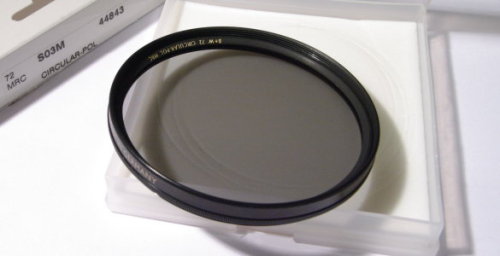

B+W C-POL MRC 72 mm
Price: 299 PLN


B+W filters are manufactured by German Schneider Optics and definitely don’t belong to the cheapest ones. They’re covered by hard, thin MRC coatings which protect them against scratches. The respect of photographers, that these filters have, should go hand in hand with the highest quality. Is it so?

Results of the test

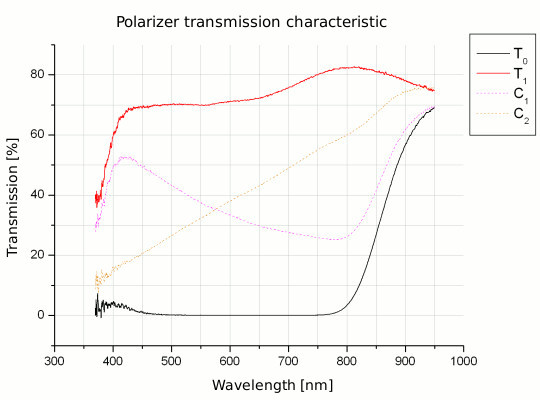

Transmission and extinction coefficient
Polarizing filters test - B+W C-POL MRC 72 mm

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Red color extinction coefficient: 1,03E-3 - Score: 2/4
Green color extinction coefficient: 1,01E-3 - Score: 2/4
Blue color extinction coefficient: 2,85E-2 - Score: 0.5/4
Mean transmission of the whole spectrum: 35.37% - Score: 2.07/3
Score:
6.57/15
Flares
Without filter
Polarizing filters test - B+W C-POL MRC 72 mm

With filter
Polarizing filters test - B+W C-POL MRC 72 mm

Score:
6.75/7.5

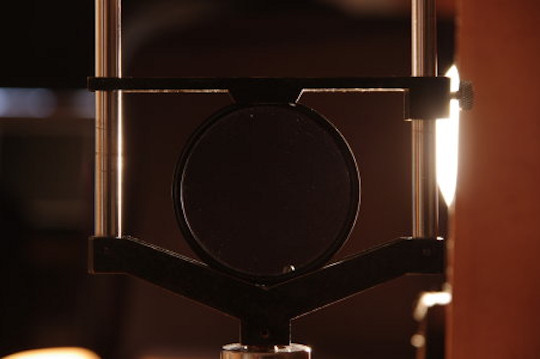

Scattering
Polarizing filters test - B+W C-POL MRC 72 mm

Luminance: 16.3
Score:
4.95/5
Vignetting
Edge darkening 2.7%
Score:
4.06/5

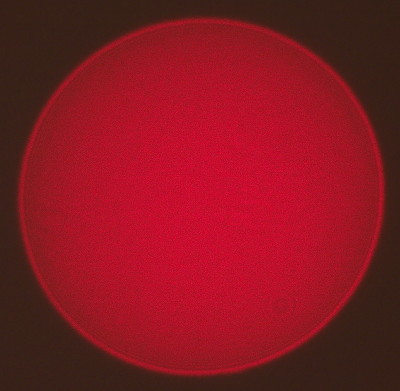

Homogeneity
Polarizing filters test - B+W C-POL MRC 72 mm

Without reservation
Score:
5/5
Final score
Overall ranking: 6th place
Econo-ranking: 13th place
27.3/37.5 pts (72.8 %)
-0.69 pts

Usage

There were no major problems with this filter during the tests. The ring turns with unequal resistance, quite hard. This resistance may turn out to be large if the filter is used at low temperatures and we turn it through a small lens hood window.

Summary

6th place in the overall ranking
It’s worth to notice that the first six stays at an even, high level. The transmission curve is flat in the majority of visible spectrum. Better transmission of red color may slightly warm the pictures. The extinction coefficient of around 1/1000 is a typical result of modern foil polarizers. Just like with competition stops working (becomes transparent) in infrared. Decent polarization transmission parallel to the polarizer’s azimuth (red line) paid with a few percentage of blue color transmission, which should be extinguished (black line). C1 and C2 graphs raise no concerns, we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum.

Filter for tests was lent by Pstryk.pl
