90 years of the Olympus company - Olympus F.Zuiko Auto-S 50 mm f/1.8 versus Olympus ZD 50 mm f/2.0 Macro

1 September 2009
Szymon Starczewski

8. Vignetting



Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

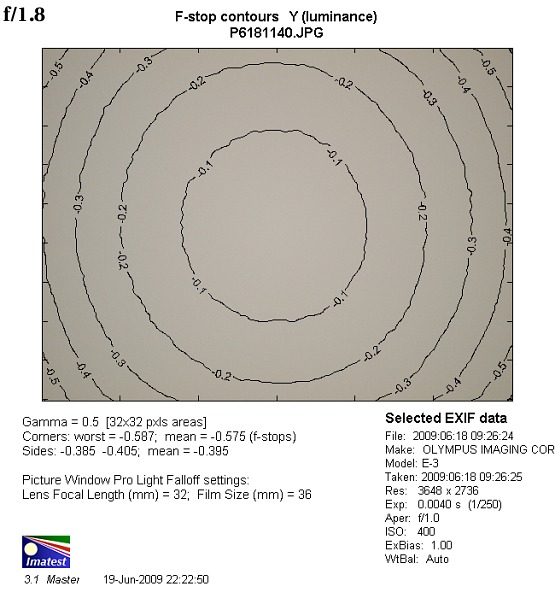

Vignetting is one of the aberrations which were supposed to be almost totally eliminated by using the Four Thirds system. However, the ZD 50 mm Macro model had a measurable level of it as, at the maximum aperture, it amounted to19% (-0.62 EV). On stopping down by one exposition value stop though, the vignetting becomes practically imperceptible (3%). What’s interesting, the Olympus F Zuiko, designed to work on full frame, behaves almost identically. At maximum aperture the vignetting reaches 18% (-0.58 EV) and on stopping down to f/2.8 it decreases to 5%. In this category and in the test conducted on a small 4/3 sensor it is difficult to distinguish between these two lenses.

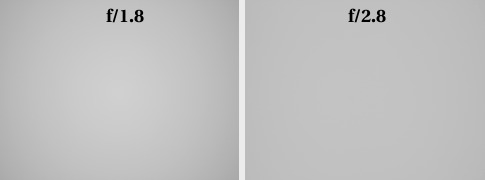

Olympus F.Zuiko Auto-S 50 mm f/1.8
90 years of the Olympus company - Olympus F.Zuiko Auto-S 50 mm f/1.8 versus Olympus ZD 50 mm f/2.0 Macro - Vignetting
Olympus ZD 50 mm f/2.0 ED Macro
90 years of the Olympus company - Olympus F.Zuiko Auto-S 50 mm f/1.8 versus Olympus ZD 50 mm f/2.0 Macro - Vignetting

90 years of the Olympus company - Olympus F.Zuiko Auto-S 50 mm f/1.8 versus Olympus ZD 50 mm f/2.0 Macro - Vignetting
