Polarizing filters test - supplement

9 October 2009
Szymon Starczewski

6. King Digital Slim MC C-PL 72 mm

Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

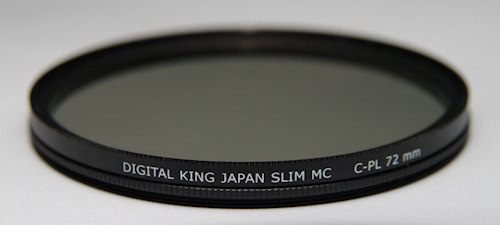

King Digital Slim MC C-PL 72 mm
Price: 95 PLN


On the Polish market, the King company’s offer is limited to caps, UV filters and polarized filters. Although the products are cheap, the “Made in Japan” inscription makes people trust their quality more.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Results of the test

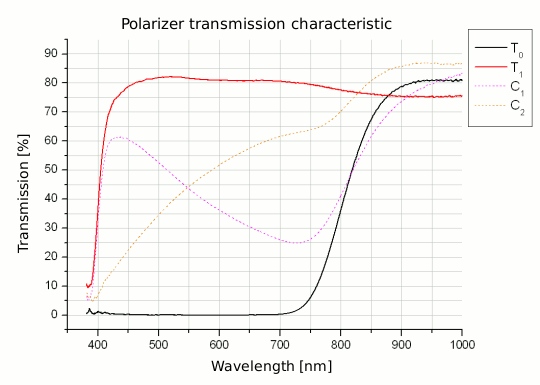

Transmission and extinction coefficient
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

Red color extinction coefficient: 7.13E-2 - Score: 1/4
Green color extinction coefficient: 7.44E-2 - Score: 3/4
Blue color extinction coefficient: 3.02E-2 - Score: 0.5/4
Mean transmission of the whole spectrum: 38.24% - Score: 2.65/3
Score:
7.15/15
Flares
Without filter
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

With filter
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

Score:
5.25/7.5

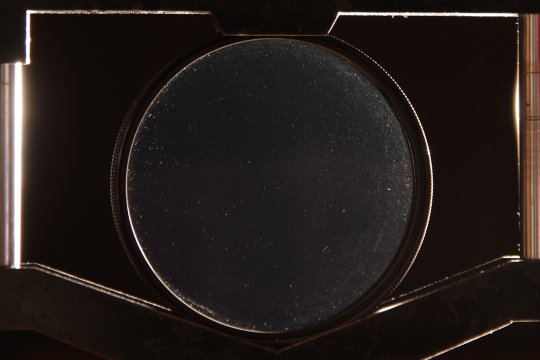

Scattering
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

Luminance: 32.1
Score:
4.37/5

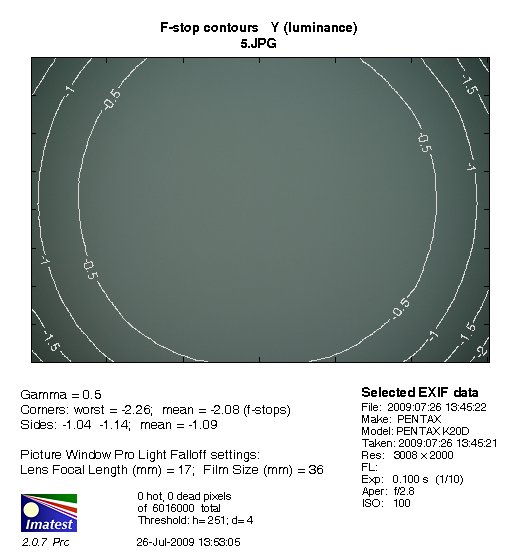

Vignetting
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

Edge darkening: 1.95%
Score:
4.47/5
Homogeneity
Polarizing filters test - supplement - King Digital Slim MC C-PL 72 mm

Significant heterogeneities
Score:
1/5
Final score
Final score:
22.2/37.5 pkt (59.2 %)

Usage

During the test we didn’t notice any problems with the filter. It moves smoothly and easily, it seems to be solidly build.

Summary

Final result: 22.2/37.5 points. The filter would be placed almost at the very end of the overall ranking (17th place). The transmission curve is flat up until the blue color. In the long wavelength area (infrared) the polarization direction changes by 90 degrees. Although this phenomenon doesn’t influence the normal work of the filter, it is interesting from the optics point of view (it is difficult to explain why it happens).

The 1/1000 extinction coefficient is typical for foil polarizers. This value changes significantly with the change of the wavelength. The C1 and C2 graphs indicate that we’re dealing with a zero-order quarter-wave plate designed for the middle range of visible spectrum.

The most serious slip-up of the King was homogeneity. When it comes to the quality of used materials, it is a bad sign . Apart from that, this filter’s results were not particularly outstanding in any of the categories – they represent an average level and I suppose this is the right place for this polarizer.

The tested filter was lent courtesy of the Foto-Tip company.
