Lens review

Canon EF-S 17-85 mm f/4-5.6 IS USM

24 September 2007
Print Share
Arkadiusz Olech

8. Vignetting

The vignetting is a big problem at the 17 mm focal length. At the maximum aperture the light fall off in the corners of the frame reaches as much as 44% (1.68 the value of the frame). Stopping down the lens helps a little but it doesn’t disappear since at f/5.6 the light fall off is 33%, at f/8 it is 27% and at f/11 it is still 23%.

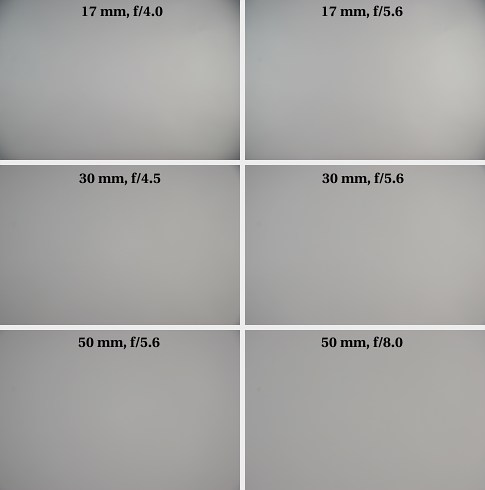

Canon EF-S 17-85 mm f/4-5.6 IS USM - Vignetting


The situation is definitely improving at the higher focal lengths, where at maximum aperture the light fall off in the corners of the frame ranges from 20 to 26%. At the 50 to 58 mm focal length it’s enough to stop down the lens by one to get the vignetting down to 10%. At 30 mm, similarly to 17 mm, stopping down the lens helps, but just a little bit, and in order to actually get to the 10% level we have to adjust the setting to f/16.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

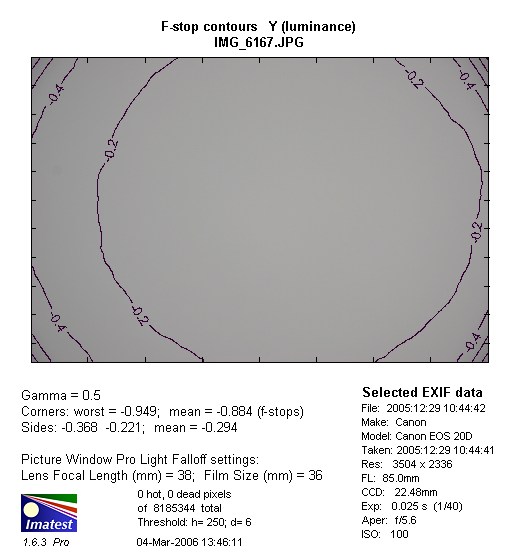

Canon EF-S 17-85 mm f/4-5.6 IS USM - Vignetting
