Leica D Summilux 25 mm f/1.4 review - Build quality

Have you rated your lenses yet?

Leica D Summilux 25 mm f/1.4

5 June 2009

Arkadiusz Olech

3. Build quality

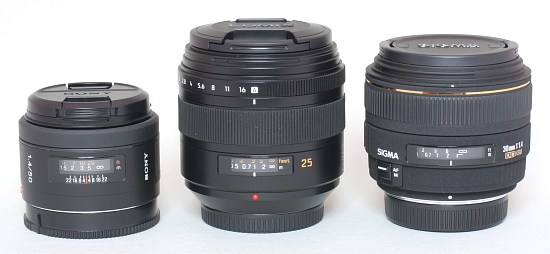

Most of the reflex cameras users work on the APS-C/DX sensors now. Many of then have never had the opportunity to work on a full frame camera and as many don’t have any access to a Four Thirds system camera. Such a situation makes creating and fueling different myths, concerning both the Four Thirds and a full frame system. rather easy. One of these myths, often repeated on many forums, is a generalized statement that the Four Thirds system lenses are smaller, lighter and faster than their full frame equivalents. The picture below, showing a full frame Sony 1.4/50 and a Sigma 1.4/30 HSM lenses next to the Leica tested here, proves how much truth, even generalized, is in such a statement. It is also worth notice that the 1.4/50 Pentax and Nikon lenses have roughly the same dimensions as the Sony presented here and bigger is only a Canon because it has an USM motor but still it is significantly smaller than the Leica. It’s not only the matter of dimensions – the Lecia is also about two times heavier than its full frame equivalents.

Leica D Summilux 25 mm f/1.4 - Build quality

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

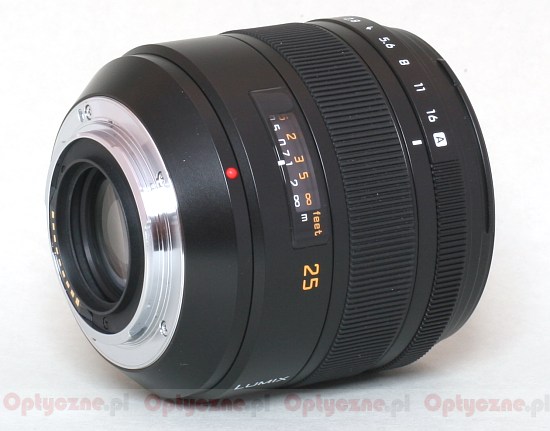

The weight is partly a result of a very solid barrel with a workmanship quality difficult to fault. When we look at Summilux we’ll notice a very large front element with a non-rotating filter thread with a diameter of 62 mm. Right next to it, on the barrel, there is an aperture ring which can be set from f/1.4 to f/16. Below there is a big, comfortable manual focus ring, allowing a very precise and smooth work. Next is a clear distance scale window and a metal bayonet, surrounding the back element of impressive size which guarantees no telecentricity problems.

The significant weight is also a result of the inner construction, which consists of 10 elements in 9 groups. Peeking here, we can find out that the typical f/1.4 50 mm lenses usually consist of 7 elements in 6 groups, without any special glass elements whereas the Leica manufacturers weren’t mean with the last element type – we’ve got as much as four low-dispersion glass elements (3of the ED class and one Super-ED) and one aspherical element. All of this is complemented by a seven diaphragm blades aperture, which can be closed down to f/16.
