8. Vignetting

One of the 4/3 system’s advantages, compared to full frame, was supposed to be small vignetting. In most of the cases this advantage has been proven by measurements. On full frame the 40-70% vignetting levels are nothing uncommon, in the Four Thirds system, though, they are practically non-existent. The Olympus 70-300 mm is not an exception to that rule and in its case that aberration won’t cause us any troubles.

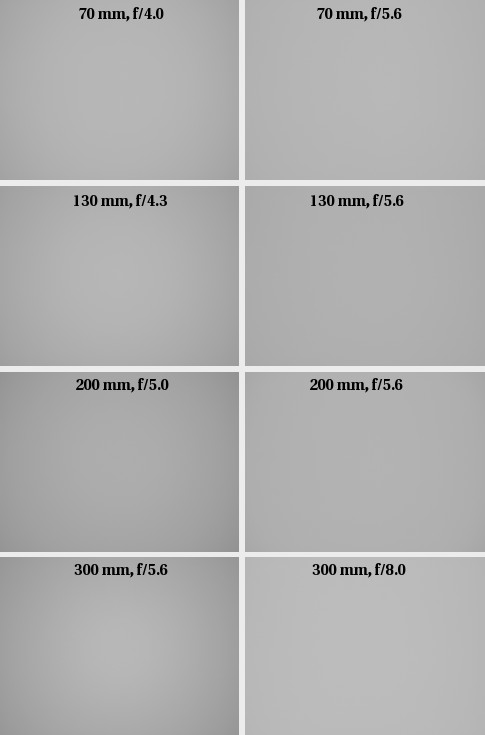

Olympus Zuiko Digital ED 70-300 mm f/4.0-5.6 - Vignetting

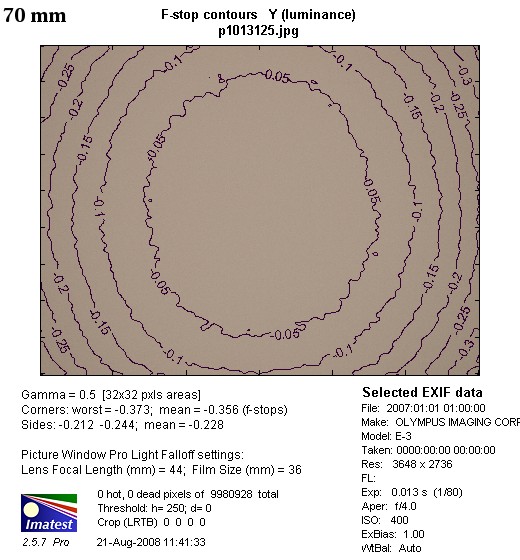

At 70 mm, even if wide open, the light fall-off in the frame corners is simply imperceptible amounting to just 11% (-0.35 EV). On stopping down to f/5.6 the vignetting decreases further and it drops to 5%.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

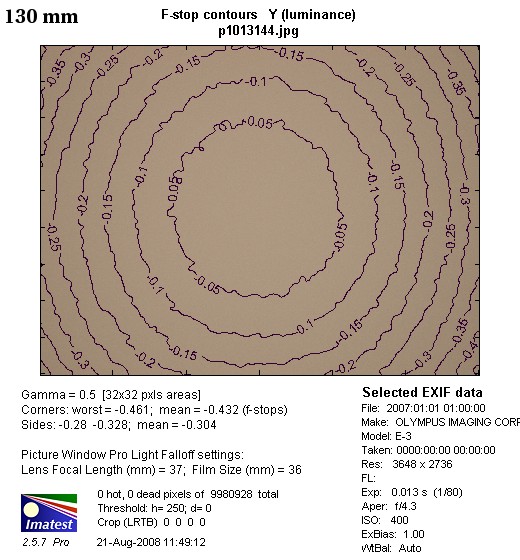

At 130 mm the situation is similar. By f/4.3 the vignetting level reaches 14% (-0.43 EV) and it decreases to 5% by f/5.6. Almost identical results we get at 200 mm because by f/5.0 the brightness loss in the frame corners reaches 15% (-0.47 EV) and it decreases to 7% by f/5.6.

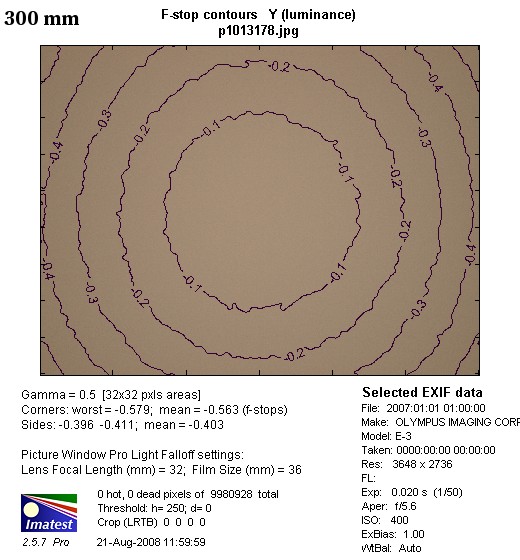

The biggest chance of seeing any vignetting, although still very slight, we get at 300 mm. There at the maximum aperture the light fall-off in the frame corners reaches 18% (-0.56 EV) and it decreases to an imperceptible level of 4% by f/8.0.

In this category the Olympus 70-300 mm deserves our praise.

Olympus Zuiko Digital ED 70-300 mm f/4.0-5.6 - Vignetting

Olympus Zuiko Digital ED 70-300 mm f/4.0-5.6 - Vignetting

Olympus Zuiko Digital ED 70-300 mm f/4.0-5.6 - Vignetting

Olympus Zuiko Digital ED 70-300 mm f/4.0-5.6 - Vignetting
