Lens review

2012-01-25


Sigma 18-200 mm f/3.5-6.3 II DC OS HSM

6. Distortion

As you see in this chart, published below, in the new model Sigma focused on minimizing barrel distortion at the widest angle of view. Indeed they succeeded – the result is much better than that of the rival lenses. It is worth noticing, though, that they had to sacrifice the performance at bigger focal lengths– there the new Sigma performs the worst in this category. The level of pincushion distortion near 50 mm is especially painful – it reaches almost 2.5%.

Out of chronicler’s duty we can also give the distortion values at those focal lengths which weren’t included in the chart below. At 30 mm we get pincushion of 1.07%, at 85mm the distortions are also of pincushion kind, reaching 2.23% and at 140 mm they decrease to a value of 1.95%.


Sigma
18–200 II OS
Canon
18–200 IS
Nikkor
18–200 VR
Sigma
18–200 OS
Tamron
18–200
18 mm
−3.96%
−5.06%
−5.40%
−4.40%
−5.14%
50 mm
2.44%
1.82%
1.59%
1.20%
1.78%
100 mm
2.09%
1.41%
1.46%
1.00%
1.38%
200 mm
1.78%
1.32%
1.21%
1.00%
1.17%

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

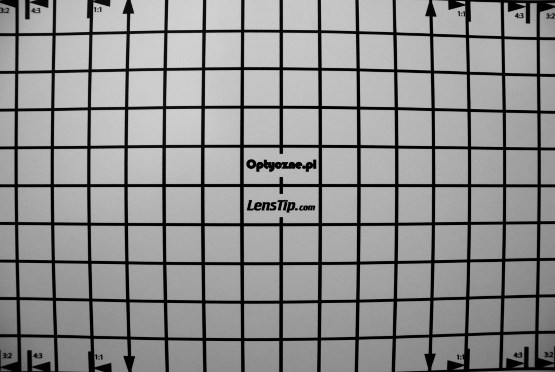

Nikon D200, 18 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

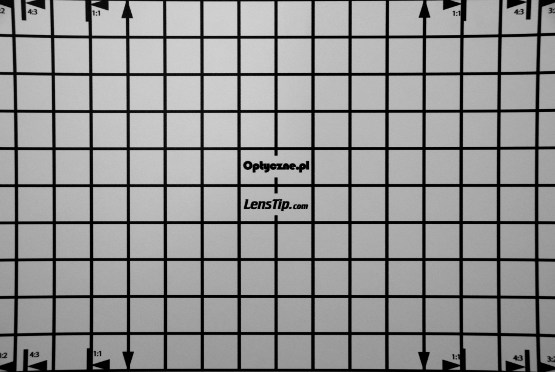

Nikon D200, 30 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

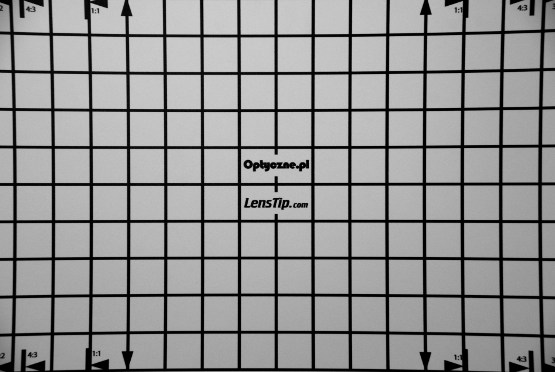

Nikon D200, 55 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

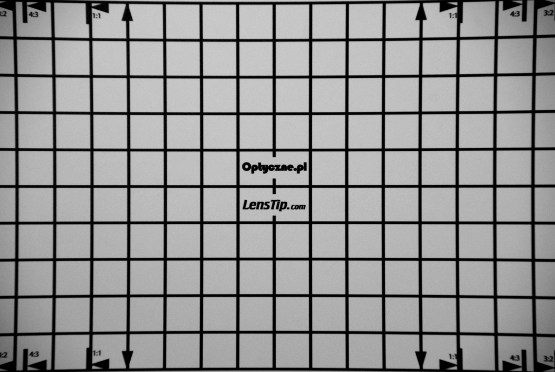

Nikon D200, 100 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

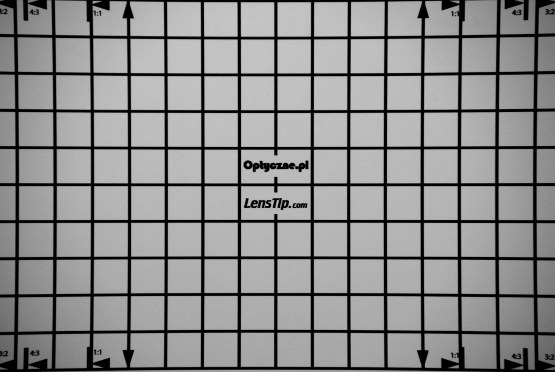

Nikon D200, 200 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion
