Lens review

Canon EF 70-200 mm f/4L USM

22 September 2007
Arkadiusz Olech

8. Vignetting

We never anticipated any problems with vignetting on the APS-C detector for the full frame designed Canon 70-200. We were right! The problem almost doesn’t exist at all.

Canon EF 70-200 mm f/4L USM - Vignetting

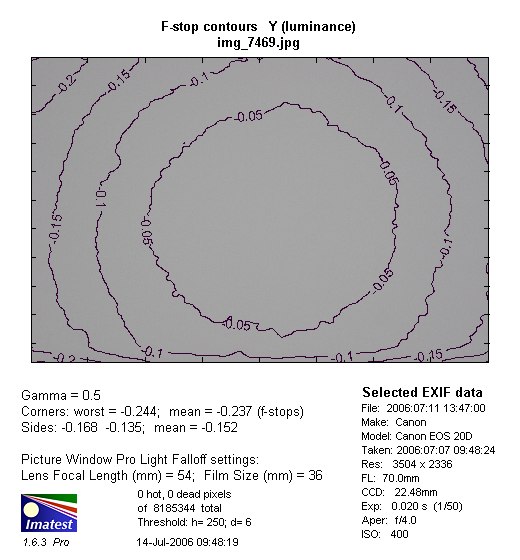

At 70 mm focal length and open aperture the light fall off in the corners of the frame reaches as little as 8% (-0.24 value of the diaphragm) and is almost unnoticeable. When stopping down the lens to f/5.6 the vignetting decreases to 2%.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

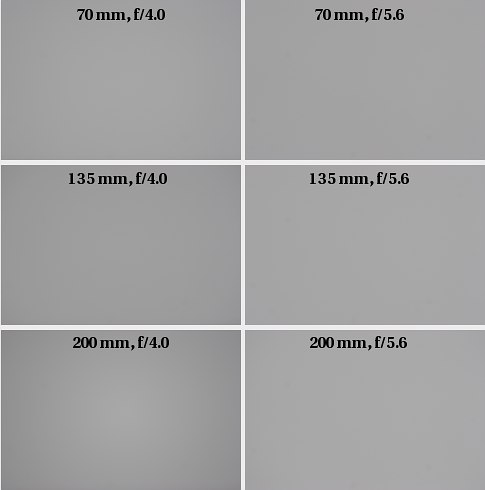

Canon EF 70-200 mm f/4L USM - Vignetting


The situation is roughly the same at 135 mm. At f/4 the light fall off in the corners reaches 9% and after stopping it down to f/5.6, it is again 2%.

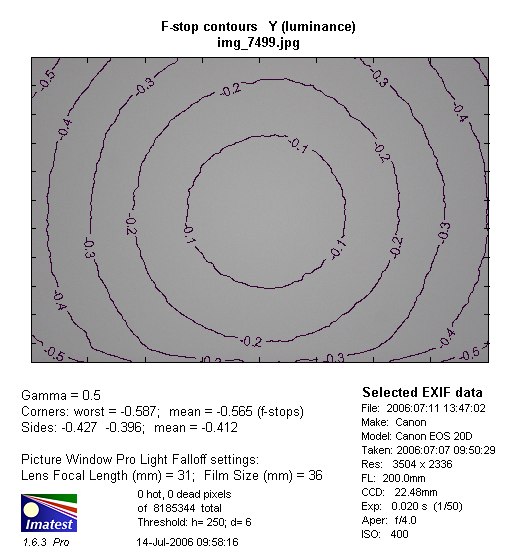

The vignetting is a bit stronger at 200 mm focal length. For the open aperture the vignetting reaches 18% (-0.56 value of the diaphragm) but the efect decreased when stopping down the lens to f/5.6 and it is only 5%. At f/8 it drops even more to 2%.

Canon EF 70-200 mm f/4L USM - Vignetting
