LensTip.com

Lens review

Sigma 105 mm f/2.8 EX DG OS HSM Macro

20 September 2011
Arkadiusz Olech

9. Ghosting, flares and transmission

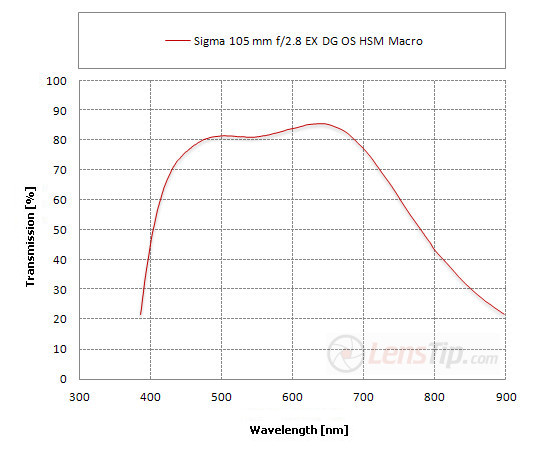

Let’s start with a transmission graph which we measured using a spectrophotometer.

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Ghosting, flares and transmission

As you can notice, the maximum transmission, amounting to about 85%, is reached for red light. In the centre of the visible spectrum and for blue light we get values near 80-82%. These results are hardly impressive. To assess them in the right way we must find out how the coatings of the tested lens work on one air-to-glass surface. There are 22 of such surfaces in the tested Sigma which means the lens loses on one of them on average 0.7-0.9% of light. It is not a result you can boast about. The best producers can reach the value of 0.2% and even Sigma itself showed many times that they can produce better coatings.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Taking into account average transmission results, can we count on a good performance against bright light? Unfortunately the answer is no. The result is even more surprising because Sigma proved time and again it can produce lenses working perfectly well against bright light. Here we deal with a total failure and it can be seen in the photos below very clearly.

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Ghosting, flares and transmission

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Ghosting, flares and transmission

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Ghosting, flares and transmission

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Ghosting, flares and transmission
