Voigtlander Color Skopar 28 mm f/2.8 SL II

6 April 2013
Arkadiusz Olech

5. Chromatic and spherical aberration


Chromatic aberration

The traces of longitudinal chromatic aberration can be noticed at the maximum relative aperture. Our photo of the autofocus testing chart, presented below, shows slight yellow-green colouring of those areas which are situated behind the focus plane and slight pink-red colouring of those areas which are in front of the focus plane. It is not a significant effect and – what’s important – it disappears on stopping down.

Voigtlander Color Skopar 28 mm f/2.8 SL II - Chromatic and spherical aberration



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

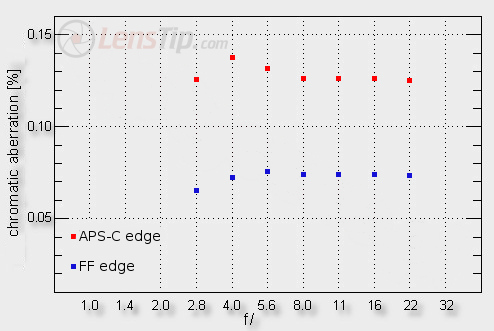

The lateral chromatic aberration can be problematic only on the edge of the APS-C/DX sensor, where its values reach levels considered by us as medium, momentarily increasing to high. Fortunately on the edge of full frame this aberration remains low.

Voigtlander Color Skopar 28 mm f/2.8 SL II - Chromatic and spherical aberration

Voigtlander Color Skopar 28 mm f/2.8 SL II - Chromatic and spherical aberration

Spherical aberration

The shape of the circles infront of and behind the focus differs noticeably. It means that the spherical aberration is not corrected in a perfect way. Fortunately the situation is not completely bad either - if it was very bad you would observe the “focus shift” and we didn’t notice such an effect. The first photo presented in this chapter is the proof.

Voigtlander Color Skopar 28 mm f/2.8 SL II - Chromatic and spherical aberration
