LensTip.com

Lens review

Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR

24 February 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

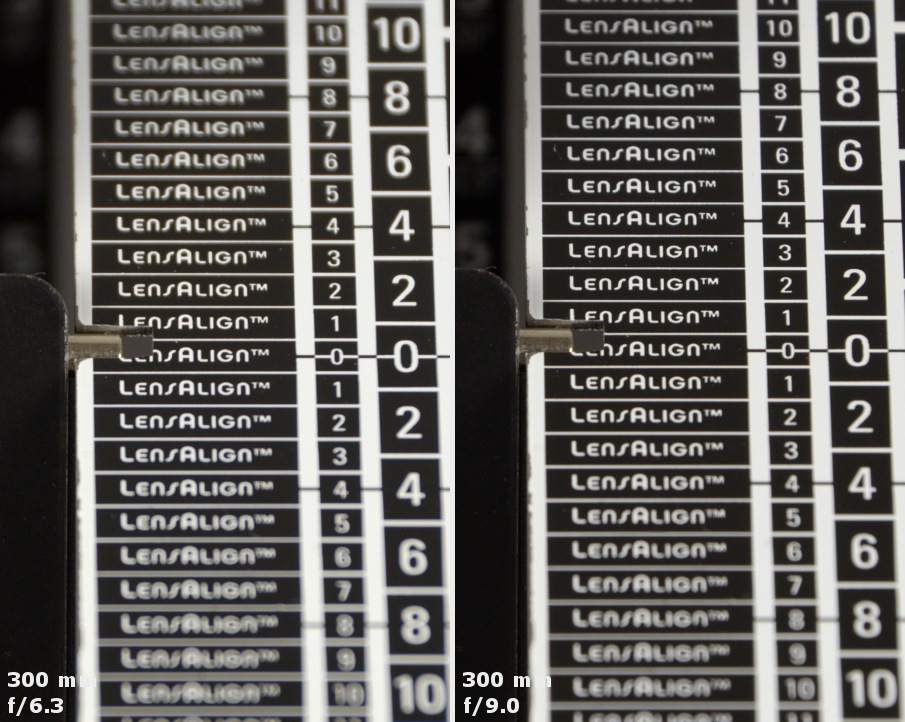

The performance of the older Nikkor AF-S DX 18–300 mm f/3.5–5.6G ED VR in this category was a complete disaster, no matter what kind of aberration you took into account. One glance at crops below and the difference between the new and the old lens are clear. The new model corrects the longitudinal chromatic aberration much better: its level is slight even at the maximum relative aperture and on stopping down by 1 EV it disappears completely.

Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


A noticeable improvement can also be seen in the case of the lateral chromatic aberration. Let’s have a glance at the graph below.

Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration


A low level of that aberration can be seen at 50-100 mm focal range. At the shortest focal lengths and in the 200-300 mm range the aberration is medium after significant stopping down. Only near the maximum relative aperture at 200 and 300 mm it can be very problematic as its level reaches 0.22%.

D7000, RAW, 100 mm, f/11.0 D7000, RAW, 300 mm, f/8.0
Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration



Spherical aberration

The tested lens didn’t have any ‘focus shift’ effect. The crops below show that the light circles we got in front of and behind the focal point differ a bit so the spherical aberration correction is not perfect; still it is certainly nothing very serious.

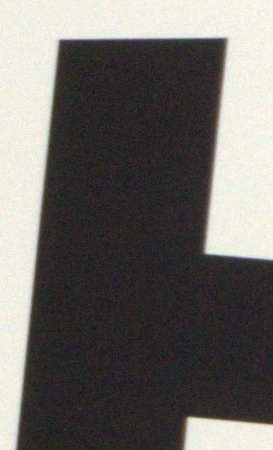

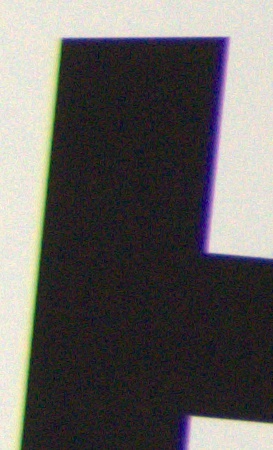

Nikon D7000, 100 mm, f/5.6, in front of Nikon D7000, 100 mm, f/5.6, behind
Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S DX 18-300 mm f/3.5-6.3G ED VR - Chromatic and spherical aberration
