Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye

2 December 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The photos presented below show clearly that the Olympus 1.8/8 doesn’t have any problems with the correction of longitudinal chromatic aberration - even at the maximum relative aperture its level is very low.

Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

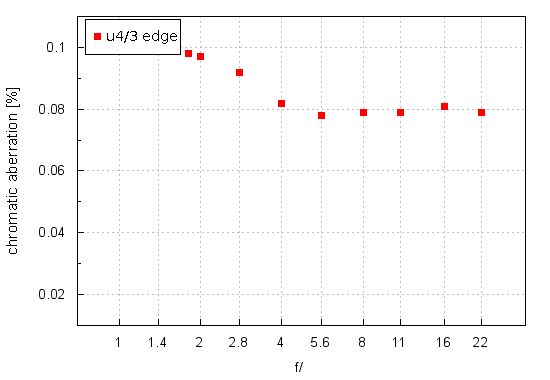

A bit more troubles you can encounter in the case of the lateral chromatic aberration and the graph below shows it well.

Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration


At the maximum relative aperture the results approach 0.1% and on stopping down they decrease. From f/4.0 the aberration becomes stabilized on a level of 0.08% or so. It shouldn’t make you worried because those results can be placed on a borderline between medium and low levels.

Olympus E-PL1, f/1.8 Olympus E-PL1, f/5.6
Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration



Spherical aberration

The depth of field provided by the Olympus 1.8/8 is so significant that it would be difficult to say whether there is a focus shift effect or not. It seems the lens doesn’t experience any noticeable issues.

Still the appearance of the circles of light we got in front of and behind the focal point proves not everything is at it should be. The first circle features a distinct rim, the second one has a slight brightness loss. It means the spherical aberration is not corrected in a perfect way.

Olympus E-PL1, f/1.8, in front of Olympus E-PL1, f/1.8, behind
Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration Olympus M.Zuiko Digital 8 mm f/1.8 ED PRO Fisheye - Chromatic and spherical aberration
