LensTip.com

Lens review

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S.

17 March 2016
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The Panasonic 2.8/30 doesn’t have almost any problems with the correction of the longitudinal chromatic aberration. You have to take a very close look at the areas outside the focus to notice any colouring in them.

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

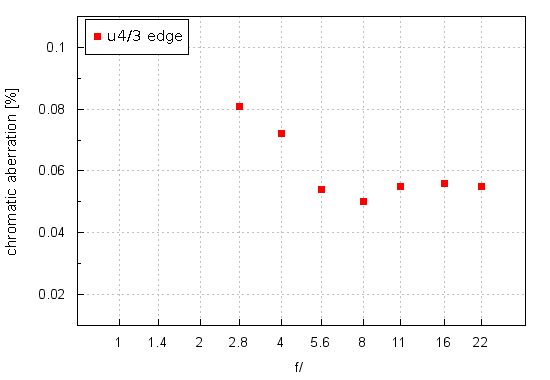

Now let’s check the situation concerning the lateral chromatic aberration – the appropriate graph is situated below.

Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration


The highest value, slightly exceeding 0.08%, we saw at the maximum relative aperture. On stopping down that aberration level decreases and in a range from f/4.0 to f/22 it keeps a steady level of about 0.05%. All these values are not especially bothersome so our assessment of the Panasonic’s 2.8/30 lateral chromatic aberration correction must be very positive.

Olympus E-PL1, f/2.8 Olympus E-PL1, f/8.0
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration


Spherical aberration

In the first photo of this chapter it would be difficult to notice any “focus shift” effect. Additionally the circles of light we got in front of and behind the focus don’t differ from each other. As a result we think the tested lens doesn’t have any spherical aberration problems.

Olympus E-M10, f/2.8, in front of Olympus E-M10, f/2.8, behind
Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration Panasonic G Macro 30 mm f/2.8 ASPH. MEGA O.I.S. - Chromatic and spherical aberration
