Lens review

Nikon Nikkor AF-S 20 mm f/1.8G ED

18 October 2014
Arkadiusz Olech

4. Image resolution

The resolution test of the Nikkor AF-S 20 mm f/1.8G ED was based on RAW files from the Nikon D3x camera, with the decency level situated near 30-32 lpmm. Good quality fixed focus lenses, attached to that body, can reach as high as 47-49 lpmm and the record value belongs to the Zeiss Otus 1.4/55 which, by f/4.0, managed to exceed slightly a level of 50 lpmm.

Let’s check how the Nikkor 1.8/20 compares here – a graph below shows its performance in the frame centre, on the edge of the APS-C/DX sensor and on the edge of full frame.

Nikon Nikkor AF-S 20 mm f/1.8G ED - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


When it comes to the frame centre the results are definitely very good. Already at the maximum relative aperture the image is sharp, with the MTFs getting near 35 lpmm. On stopping down the image quality improves noticeably and by f/4.0 it reaches the maximum value, amounting to 46 lpmm. It is not a record but still it’s worth your praise.

The edge of the APS-C sensor is beyond reproach as well. Even at the maximum relative aperture the image remains decent, improving slowly on stopping down and reaching the maximum MTF values near f/8.0. The results won’t perhaps bowl you over but certainly they are good, allowing you to enjoy sharp images.

Our reservations start on full frame but it is hardly a surprise. Small dimensions of the lens and its demanding parameters had to make themselves felt somehow. As a result you land below the decency level near the maximum relative aperture and sensible MTFs are reached only after stopping down to f/4.0-f/5.6.

To sum up, taking into account the scale of the problem the Nikon optics specialists were facing, the overall assessment of the tested lens is very positive. The image quality in the frame centre and on the edge of the APS-C sensor remains flawless. The problems appear only on the edge of full frame but even there the results are satisfactory after you stop the lens down a bit more.

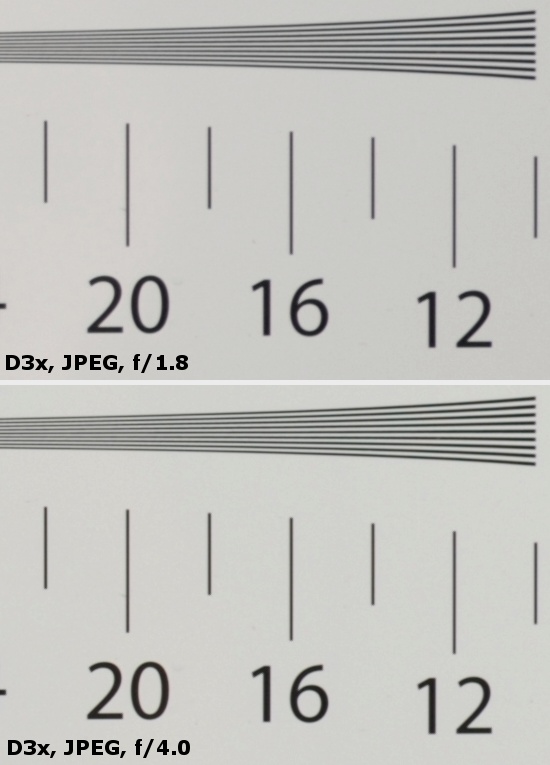

The crops you see below were taken from JPEG files saved along RAW files we used for the analysis above.

Nikon Nikkor AF-S 20 mm f/1.8G ED - Image resolution
