Lens review

Sony FE 85 mm f/1.4 GM

14 September 2016
Arkadiusz Olech

8. Vignetting

First let’s check the vignetting performance for the smaller APS-C sensor – appropriate thumbnails can be found below.

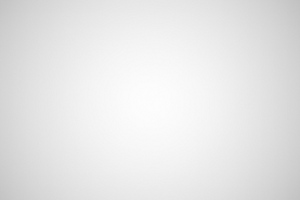

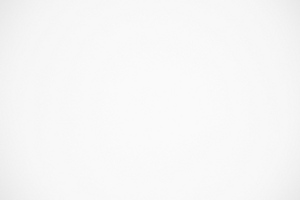

A7R II, APS-C, f/1.4 A7R II, APS-C, f/2.0
Sony FE 85 mm f/1.4 GM - Vignetting Sony FE 85 mm f/1.4 GM - Vignetting


The significant physical dimensions of the lens allow it to get good results in this category. The vignetting is visible only at the maximum relative aperture where it reaches 23% (−0.75 EV). By f/2.0 and f/2.8 it disappears practically completely, amounting to, respectively, 7% (−0.20 EV) and 2% (−0.07 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

When you use the bigger full frame sensor there are far more problems and the photos below show them very clearly.

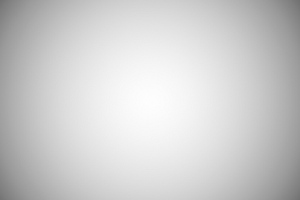

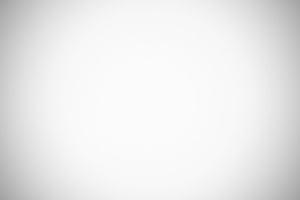

A7R II, FF, f/1.4 A7R II, FF, f/2.0
Sony FE 85 mm f/1.4 GM - Vignetting Sony FE 85 mm f/1.4 GM - Vignetting

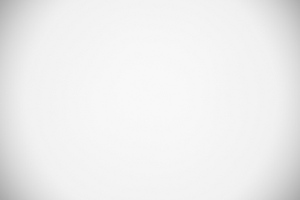

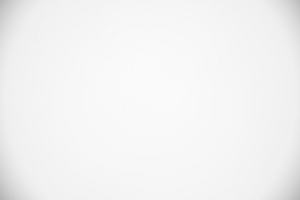

A7R II, FF, f/2.8 A7R II, FF, f/4.0
Sony FE 85 mm f/1.4 GM - Vignetting Sony FE 85 mm f/1.4 GM - Vignetting

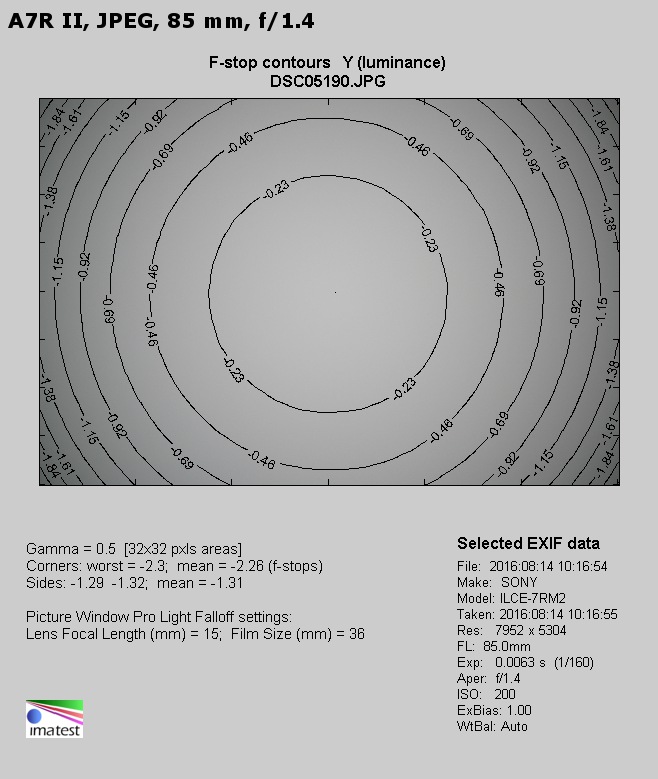

At the maximum relative aperture the brightness loss in the frame corners is 54% (−2.24 EV). It is a high value but still it remains lower than the result of the huge Otus 1.4/85; it is also noticeably better than the result reached by the Milvus 1.4/85. On the other hand the Sigma 1.4/85 HSM had vignetting of just 37%.

In the case of the Sony FE 1.4/85 GM the stopping down is less effective than in the case of its rivals. By f/2.0 the vignetting is 36% (−1.27 EV), and by f/2.8 it remains still 30% (−1.05 EV). The vignetting of the Otus at that point was just 15% and that of the Milvus reached 24%.

The brightness loss is still visible by f/4.0 and f/5.6 where it amounts to, respectively, 26% (−0.87 EV) and 21% (−0.67 EV). Almost imperceptible level of that aberration can be achieved only by f/8 and f/11, where we got the following results: 15% (−0.47 EV) and 10% (−0.29 EV).

Below we present the averaged out values of brightness loss in concentric circles you get as you move away from the frame centre. The percentage numbers, presented in every picture, state the size of the real surface area limited from above and from the right with a value of 100% and from below by the presented curve. That’s how you know how much light overall is lost due to the vignetting. Still you shouldn’t mix up those percentage values with the ones, given at the beginning of the chapter because they are not directly connected with each other.

Sony FE 85 mm f/1.4 GM - Vignetting

f/1.4 f/2 f/2.8 f/4


Sony FE 85 mm f/1.4 GM - Vignetting
