LensTip.com

Lens review

Nikon Nikkor Z 50 mm f/1.8 S

19 February 2020
Maciej Lata││o

4. Image resolution

It's a beginning of our tests of the Nikon Z system lenses based on the Nikon Z7 body; the RAW files, produced by that camera were developped by neutral software such as dcraw. As we were able to check thoroughly optical properties of several fixed-focal instruments of this system we think we can determine proper reference levels. Lenses reaching record revels should be able to exceed 85 lpmm; maximum results of other excellent system prime lenses might fit the range from 80 to 85 lpmm. The decency level we set at 42–44 lpmm. Of course, while adding more Z system tests, we might need to correct these values a bit.

Let's see how the Nikkor Z 50 mm f/1.8 S compares – its results in the frame centre and on the edge of the APS-C/DX sensor and on the edge of full frame presents a graph below.

Nikon Nikkor Z 50 mm f/1.8 S - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The results of the tested Nikkor in the frame centre are simply sensational. Already at the maximum relative aperture the lens gets to a very high level of over 70 lpmm and the highest value, amounting to 83.7 ±0.9 lpmm, we recorded by f/4.0. It's clear that abandoning the old double Gauss construction was a good idea as it resulted in a decidedly better performance.

In similar terms you can describe the performance on the edge of the smaller APS-C/DX sensor. Fully useful images you see even by f/1.8 and f/2.0 and on stopping down the lens reaches relatively high values, around 65 lpmm. It's worth reminding here that the Nikkor AF 50 mm f/1.8D and the Nikkor AF-S 50 mm f/1.8G had to be stopped down to about f/2.8 in order to produce acceptable images in that part of detector. If you wanted to compare the Nikkor Z 1.8/50 to a newer construction designed for mirrorless cameras you might mention the Sony Carl Zeiss Sonnar T* FE 55 mm f/1.8 ZA – a lens which, even if it is placed at the same price point as the Nikkor, optically remains visibly weaker.

First reservations concerning resolution might appear while analyzing the performance on the edge of the frame, where f/1.8 and f/2.0 apertures provide MTFs a tad below the decency level. In order to achieve it, you have to close down the aperture to near f/2.2. Of course we have to remind that a similar resolution level in the case of the Sonnar 1.8/55 could be reached only about f/8.0 and in the case of the older Nikkor 1.8/55 – only near f/4.0-5.6. Taking it all into account all our reservations seem to be rather trivial, especially that new, non-Gauss constructions, so praised by us, e.g. the Tamron SP 45 mm f/1.8 Di VC USD, didn't fare any better in this category.

At the end of this chapter, traditionally, we present crops taken from photos of our resolution testing chart which were saved as JPEG files along the RAW files, used for the analysis above.

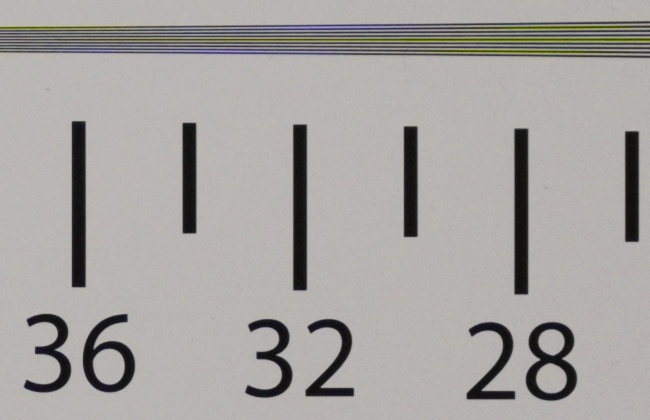

NikonáZ7, JPEG, f/1.8
Nikon Nikkor Z 50 mm f/1.8 S - Image resolution

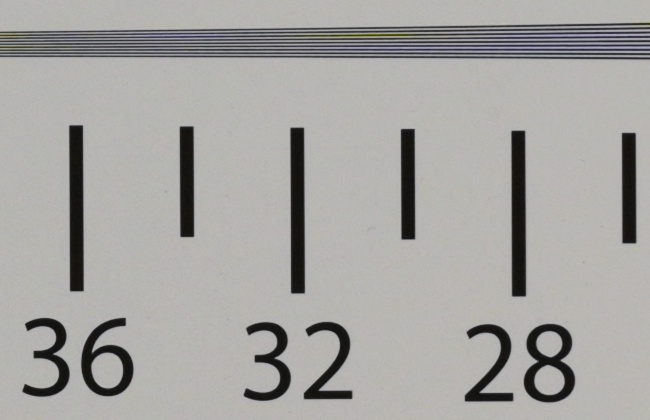

NikonáZ7, JPEG, f/4.0
Nikon Nikkor Z 50 mm f/1.8 S - Image resolution
