LensTip.com

Lens review

Nikon Nikkor Z 50 mm f/1.8 S

19 February 2020
Maciej Latałło

8. Vignetting

Several factors influence vignetting results. On the one hand the enlargement of Nikkor's physical dimensions, when you compare it to its reflex camera predecessors, should be a positive thing. On the other hand more elements inside mean more losses of light in glass and on air-to-glass surfaces and these losses increase along with the increase of angle of incidence. A different mount construction adds to that as well – its bigger diameter is more favourable for new constructions but a smaller distance from the sensor and lower telecentricity mean more vignetting problems. To be honest, after analyzing all these aspects we were very curious how the lens would perform in our test.

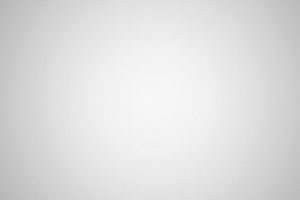

Nikon Z7, APS-C/DX, f/1.8 Nikon Z7, APS-C/DX, f/2.0
Nikon Nikkor Z 50 mm f/1.8 S - Vignetting Nikon Nikkor Z 50 mm f/1.8 S - Vignetting


On the smaller detector you get some chances to notice vignetting only in the vicinity of the maximum relative aperture. By f/1.8 that aberration reaches a moderate level of 25% (−0.83 EV), by f/2.0 it decreases to 20% (−0.65 EV), and by f/2.8 it becomes practically imperceptible, dropping to a value of 7% (−0.22 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

When you progress to the bigger full frame sensor there are more problems and photos below show them pretty well.

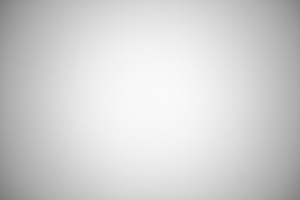

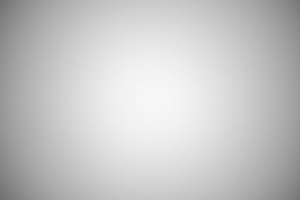

Nikon Z7, FF, f/1.8 Nikon Z7, FF, f/2.0
Nikon Nikkor Z 50 mm f/1.8 S - Vignetting Nikon Nikkor Z 50 mm f/1.8 S - Vignetting

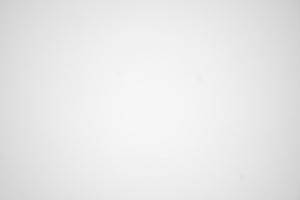

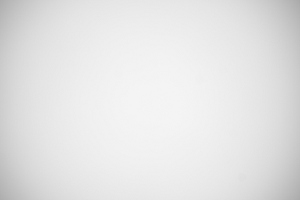

Nikon Z7, FF, f/2.8 Nikon Z7, FF, f/4.0
Nikon Nikkor Z 50 mm f/1.8 S - Vignetting Nikon Nikkor Z 50 mm f/1.8 S - Vignetting


At the maximum relative aperture you have to take into account the loss of 53% of light in frame corners (−2.20 EV). Here the tested lens is weaker than its Gauss predecessors and also the Tamron 1.8/45 VC but, at the same time, it fares a bit better than the Sonnar 1.8/55 FE.

When you stop down the aperture to f/2.0 the vignetting decreases to a still distinct level of 48% (−1.89 EV) and it remains completely noticeable also by f/2.8 where we got a result of 29% (−0.99 EV). A low level is achieved only by f/4.0, where that aberration amounts to 17% (−0.55 EV). By f/5.6 you can notice a drop to 16% (−0.52 EV) and further stopping down doesn't have any measurable influence on the aberration, described in this chapter.

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value of every image, expressed in percents, shows an area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please, don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected

Nikon Nikkor Z 50 mm f/1.8 S - Vignetting

f/1.8 f/2 f/2.8 f/4
