Canon EF 50 mm f/1.2L USM

10 August 2010
Arkadiusz Olech

8. Vignetting

Looking at the photos below we can assess how the tested lens fares when it comes to the brightness loss in the frame corners of the APS-C sensor, depending on the aperture used.

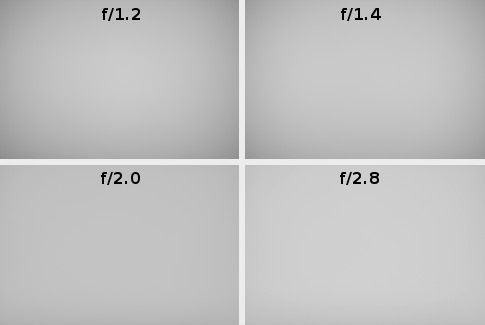

Canon EF 50 mm f/1.2L USM - Vignetting


The vignetting will be noticeable, but not very bothersome, only near the maximum relative aperture. By f/1.2 it amounts to 29% (-0.97 EV) and by f/1.4 it decreases to 24%. Implementing the f/2.0 aperture will make the problem disappear completely because the light fall-off in the frame corners is just 9% there. The full frame performance is much worse though. The miniatures, shown below, will help us assess it better.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

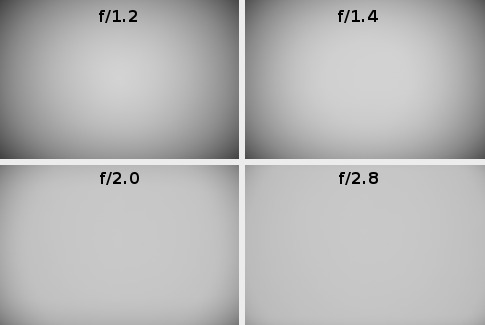

Canon EF 50 mm f/1.2L USM - Vignetting

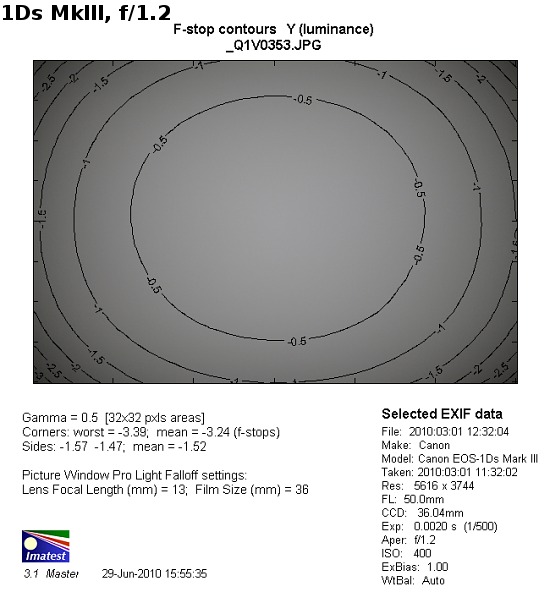

At the maximum relative aperture we lose as much as 67% of light (-3.24 EV) in the full frame corners. By f/1.4 the situation doesn’t improve a lot because the vignetting still amounts to 61% there. A significant improvement can be noticed after stopping down the lens to f/2.0 because the brightness loss reaches 39%. By f/2.8 the vignetting decreases to 20% and by f/4.0 – to an imperceptible level of 10%.

On the one hand the 50L should be praised because the cheaper EF 50mm f/1.4 has higher vignetting when wide open than the faster L device, tested here. On the other hand, though, the new Nikkor AF-S 1.4/50 fares better in this category than the tested lens…


Canon EF 50 mm f/1.2L USM - Vignetting
