Voigtlander Ultron 40 mm f/2 SL II Aspherical

9 November 2010
Arkadiusz Olech

8. Vignetting

Looking at the tested lens’s parameters, taking into account its small dimensions and the fact that it is a full frame device we expected huge vignetting problems. Getting ahead of the results a bit we can say that our fears were exaggerated and the situation is not at all as tragic as we thought.

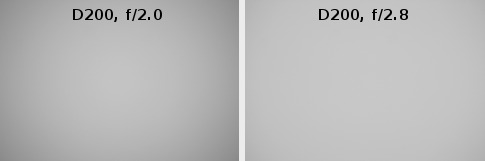

First let’s check the situation on the smaller APS-C/DX sensor.

Voigtlander Ultron 40 mm f/2 SL II Aspherical - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

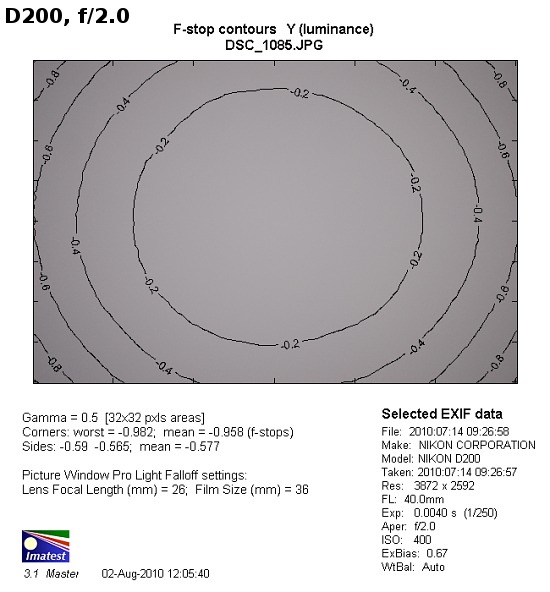

The vignetting is noticeable here only at the maximum relative aperture, where it amounts to 28% (-0.96 EV). On stopping down the aperture to f/2.8 the problem becomes negligible, decreasing to the value of 11%; by f/4.0 it disappears completely (6%).

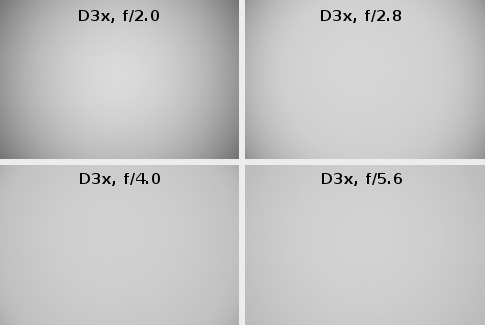

For understandable reasons a far worse situation can be observed on full frame. The thumbnails below show it very clearly.

Voigtlander Ultron 40 mm f/2 SL II Aspherical - Vignetting

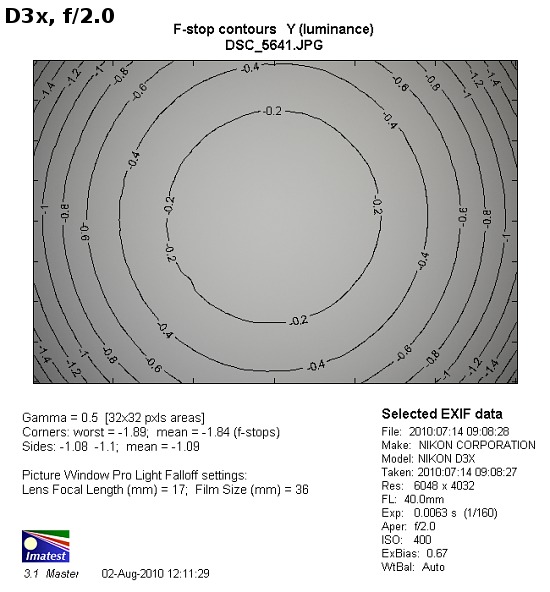

At the maximum relative aperture the vignetting reach a very high level of 47% (-1.84 EV). It is not a value we would like to observe but defending the Voigtlander a bit we might quote the result of the Canon EF 50 mm f/1.4 USM which by f/2.0 lost as much as 53% of light. You must admit the Voigtlander compares favourably with that lens. On stopping down to f/2.8 the vignetting decreases to the value of 31%. By f/4.0 this aberration reaches 17% and by f/5.6 it is just 12%, a value really negligible.


Voigtlander Ultron 40 mm f/2 SL II Aspherical - Vignetting

Voigtlander Ultron 40 mm f/2 SL II Aspherical - Vignetting
