LensTip.com

Lens review

Canon EF 100-300 mm f/4.5-5.6 USM

22 September 2007
Arkadiusz Olech

3. Build quality

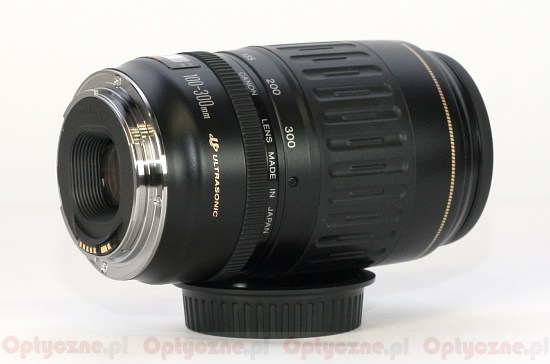

As opposed to its cheaper equivalents, the Canon 100-300 mm can be complimented on its build quality. The material quality, metal bayonet, readable scale and comfortable focal length and focusing rings reminded of what can be observed in the Canon fixed focal length lenses of 1.4/50, 1.8/85 or2.0/100.

Taking into consideration its price and the universality of the lens, we find nothing to complain about in this category. It is worth adding that the front lens together with the filter thread do not move while focusing and changing the focal length.

Canon EF 100-300 mm f/4.5-5.6 USM - Build quality


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The lens size (73 x 121.5 mm) is typical for all the lenses of this class and is similar to other competitive lenses. However, the lens has a USM motor, which is not present in other lenses like Tamron or Sigma. Unfortunately, we have to complain about the lens’s weak aperture. At the 100 mm that we worked with, the wide open f/4.5 aperture decreases quickly and at the 200 mm it reaches f/5.6.

Canon EF 100-300 mm f/4.5-5.6 USM - Build quality

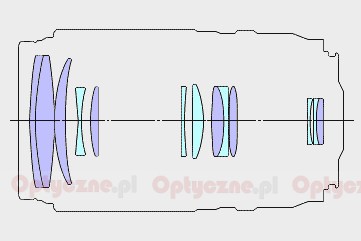

The Canon’s internal construction contains 13 lenses set up in 10 groups. The designers do not mention any aspheric elements or any other special glass being used. The lens is equipped with an eight-blade diaphragm and a 58 mm filter thread.

Canon EF 100-300 mm f/4.5-5.6 USM - Build quality
