LensTip.com

Lens review

Nikon Nikkor AF-S 35 mm f/1.8G ED

12 June 2014
Arkadiusz Olech

8. Vignetting

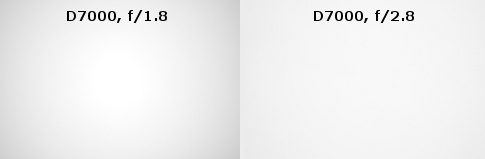

The vignetting performance on the small sensor of the Nikon D7000 can be assessed by looking at the thumbnails shown below.

Nikon Nikkor AF-S 35 mm f/1.8G ED - Vignetting


In that case the problem is not serious. At the maximum relative aperture the vignetting is 20% (-0.66 EV) and on stopping down to f/2.0 that aberration decreases to 15% (-0.48 EV). By f/2.8 the problem disappears almost completely because the light fall-off in the frame corners amounts to just 5% (-0.16 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

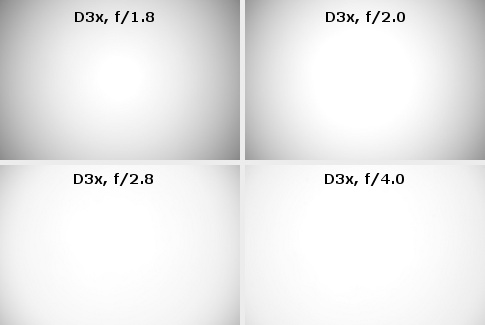

There are more problems on full frame and the photos, taken with the Nikon D3x show it very clearly.

Nikon Nikkor AF-S 35 mm f/1.8G ED - Vignetting

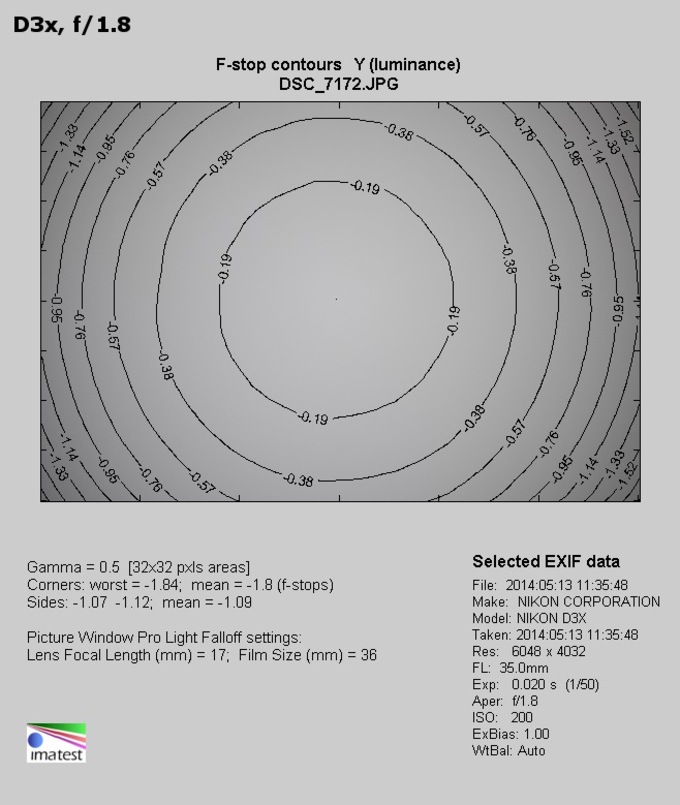

If you want to use the f/1.8 relative aperture you must take into account a loss of 46% of light in the frame corners (-1.8 EV). On stopping down the aperture to f/2.0 that value decreases to 40% (-1.44 EV). Although that level can hardly be called low it is worth emphasizing here that the faster and more expensive Nikkor 1.4/35G at the same aperture had a result of 44% so actually a bit worse! The Nikkor 1.8/35G ED also fares here noticeably better than the Canon 2/35 IS which in the vignetting category had a very painful slip-up. The vignetting decreases to a sensible level by f/2.8 where it reaches 23% (-0.77 EV). By f/4.0 it gets just 14% (-0.43 EV) and it drops to 11% (-0.34 EV) by f/5.6. Further stopping down doesn’t have any measurable influence on that aberration.

It is clear that the vignetting is a category which allows the Nikkor 1.8/35G ED to prove its value even in comparison with its faster brother from the same system. It should be praised for such a performance.

Nikon Nikkor AF-S 35 mm f/1.8G ED - Vignetting
