Lens review

Samyang 10 mm f/2.8 ED AS NCS CS

16 June 2014
Arkadiusz Olech

4. Image resolution

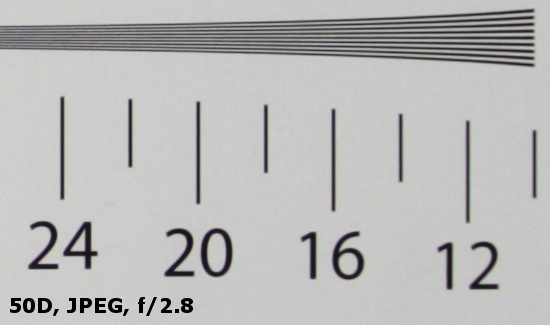

The resolution test of the Samyang 10 mm f/2.8 ED AS NCS CS was based on  RAW files from the Canon EOS 50D camera. The best lenses, tested on that camera, can reach as high as 52-55 lpmm. The decency level is situated around 34-35 lpmm. It’s worth reminding here that the new Tokina 11-16 mm f/2.8 at 11 mm focal length and fully opened had results of nearly 46 lpmm and on slight stopping down it could exceed slightly a level of 50 lpmm. The Sigma 10-20 mm f.3.5 was tested with the Nikon D200 so on a sensor less densely packed, providing lower MTFs. Still we didn’t complain either: at 10 mm and wide open the Sigma got to 40 lpmm which is an excellent result for such a sensor.

As you can see the Samyang faced a real challenge because the standards are raised very high. Let’s check how it compared in the frame centre and on the edge of the APS-C/DX sensor.

Samyang 10 mm f/2.8 ED AS NCS CS - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The results in the frame centre are sensational. At a very difficult combination of 10 mm focal length and f/2.8 aperture the lens reaches a brilliant result of 50 lpmm. On slight stopping down you see the MTF levels rise to 52 lpmm, a value worth the best fixed-focus lenses. Here we don’t have the slightest reservations; in fact the lens should be praised a lot.

The situation on the edge of the frame is a bit of a problem though. Firstly the image quality decreases swiftly as you move from the centre and the differences between MTF values you get in the centre and on the edge are really huge – so huge that by f/2.8 and f/4.0 you can’t call the images you see near the edge useful and decent results are reached only by f/5.6. The best value, that of 36 lpmm, the lens gets by f/8.0. It is a sensible result but nothing more…

The performance of the Samyang looks even worse when you compare it with the performance of its zoom rivals. The Sigma 10-20mm became useful already from f/4.0 and even at the maximum relative aperture it was only a tad below the decency level. The Tokina 11-16 mm f/2.8 at 11 mm was also useful already by f/4.0 and by f/5.6-8.0 it could even exceed a level of 40 lpmm.

Overall in this category our feelings are mixed. A sensational image quality in the centre is undoubtedly a huge advantage; on the other hand a wide-angle device is exactly for using the whole frame to its fullest. Cropping it in order to remove weak edges is out of question. I think I’d prefer a bit weaker performance in the centre and much better edges.

Samyang 10 mm f/2.8 ED AS NCS CS - Image resolution
