LensTip.com

Lens review

Samyang 10 mm f/2.8 ED AS NCS CS

16 June 2014
Arkadiusz Olech

8. Vignetting

Let’s check the vignetting level on images we got using the Canon 50D.

Samyang 10 mm f/2.8 ED AS NCS CS - Vignetting


It is huge and sticks out immediately; our measurements confirm that as well. At the maximum relative aperture the brightness loss in the frame corners amounts to as much as 49% (-1.95 EV). Fortunately it decreases sharply on stopping down the aperture to f/4.0 where it is just 26% (-0.87 EV). By f/5.6 that aberration becomes almost imperceptible reaching 12% (-0.38 EV). Further stopping down doesn’t have any measurable influence on the vignetting level.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Unfortunately in a duel with some of the zooms the Samyang loses again. The Tokina at a combination of 11 mm and f/2.8 showed 33% of vignetting so its result was much better. However, as a consolation of a kind, we can also quote here the result of the Sigma which at 10 mm and by f/3.5 lost as much as 53% of light in the frame corners.

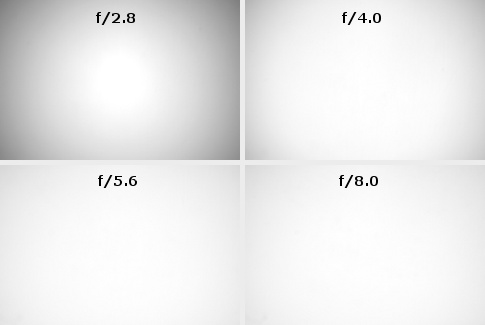

Samyang 10 mm f/2.8 ED AS NCS CS - Vignetting
