Lens review

Samyang 12 mm f/2.8 ED AS NCS Fish-eye

30 December 2014
Arkadiusz Olech

8. Vignetting

While working on APS-C/DX sensors the vignetting won’t cause you any problems and the thumbnails below show it pretty well.

Samyang 12 mm f/2.8 ED AS NCS Fish-eye - Vignetting

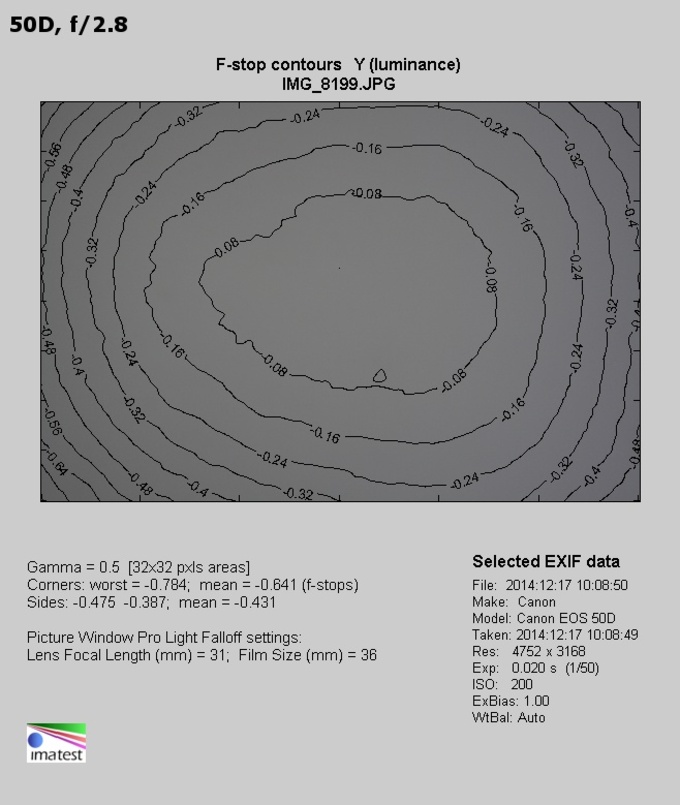

Our measurements confirm that observation – at the maximum relative aperture the vignetting reaches only 20% (−0.64 EV) and it decreases to 11% (−0.33 EV) after applying f/4.0. Stopping down the aperture by next 1 EV makes the brightness loss in the corners imperceptible as it is just 6% (−0.19 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

It’s worth mentioning that using the Samyang 12 mm f/2.8 ED AS NCS Fish-eye on APS-C/DX sensors is not only a quite sensible idea but also the best way of getting a really wide angle of view with a low vignetting level. The stereographic mapping used in the Samyang allows a 1.5x sensor achieve an angle of view of almost 125 degrees (if you wanted to get the same value using a rectilinear lens you would have to deal with a 7.5 mm focal length). Other mapping functions won’t allow you such an achievement as other fisheye lenses come with 15-16 mm focal lengths. For example after attaching the old, good Zenitar 2.8/16 (which, on full frame, like the Samyang, has an angle of view of 180 degrees) to a camera with the APS-C/DX sensor you have a field of view of less than 100 degrees at your disposal.

Even the biggest, flat and evenly lit vignetting testing chart is too small for a fisheye lens tests on full frame. The photos we took in our studio along with photos of night sky we took outside allowed us to compute roughly the vignetting level of the tested lens. One glance at photos from the Samyang let you know that this problem is not huge. It seems that even at the maximum relative aperture in frame corners the lens doesn’t loses more than 1.2 EV.

Samyang 12 mm f/2.8 ED AS NCS Fish-eye - Vignetting
