LensTip.com

Lens review

Sigma A 24-35 mm f/2.0 DG HSM

29 July 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

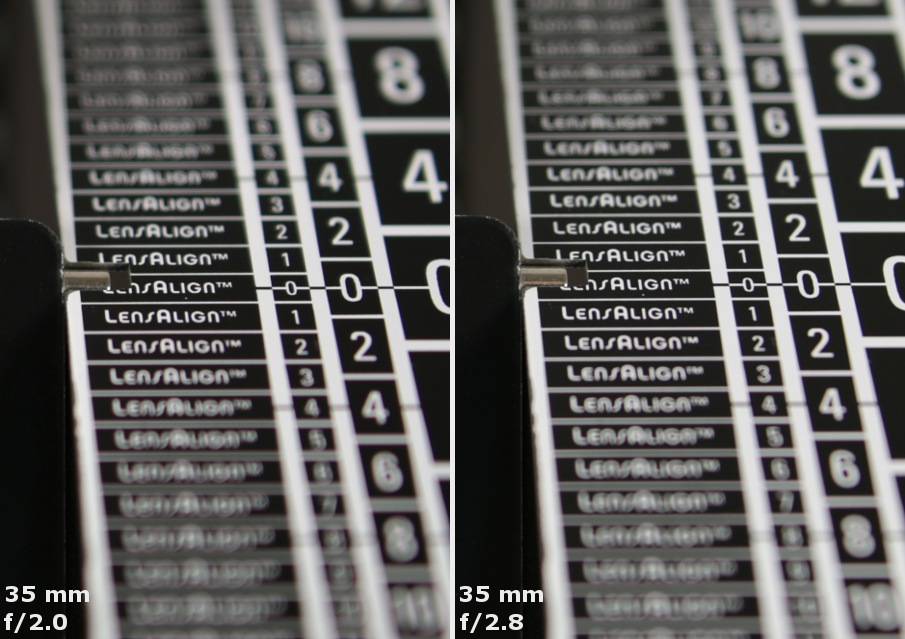

The longitudinal chromatic aberration is corrected well. Its influence seems to be noticeable near the maximum relative aperture but it is not huge and it disappears almost completely on stopping down the aperture to f/2.8.

Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Two graphs below present the lateral chromatic aberration performance of the lens; the first one concerns the edge of the APS-C/DX sensor and the second one – the edge of full frame.

Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration

Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration


As you can notice the lateral chromatic aberration is not a problem either. Its highest level can be seen at the shortest focal length where it reaches 0.08-0.9%. Such values remain still on a borderline between low and medium levels. For a change at 35 mm the aberration is low everywhere and very difficult to spot in real life photos.

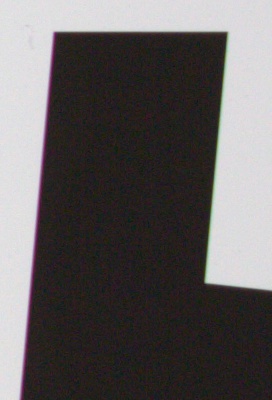

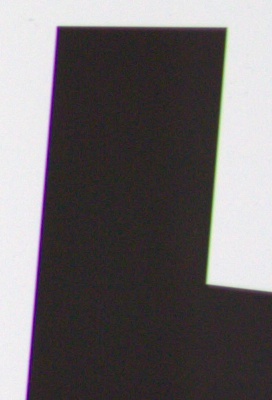

Canon 5D III, 24 mm, f/2.0 Canon 5D III, 35 mm, f/2.0
Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration



Spherical aberration

The Sigma 24–35 mm doesn’t show any problems related to spherical aberration and both the first photo of this chapter (lack of „focus shift” effect) and the images of circles of light we got in front of and behind the focus, which are pretty similar, prove that much.

Canon 5D MkIII, 35 mm, f/2.0, in front of Canon 5D MkIII, 35 mm, f/2.0, behind
Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration Sigma A 24-35 mm f/2.0 DG HSM - Chromatic and spherical aberration
