Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S.

15 October 2016
Arkadiusz Olech

7. Coma, astigmatism and bokeh

Coma can be a bit bothersome at 12-20 mm focal lengths but even there it would be difficult to call its level high. Near the longer end of the focal range that aberration becomes even lower. Overall we don’t have any reservations concerning its correction.

G7, 12 mm, f/3.5, center G7, 12 mm, f/3.5, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh
G7, 18 mm, f/3.9, center G7, 18 mm, f/3.9, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh
G7, 33 mm, f/5.1, center G7, 33 mm, f/5.1, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh
G7, 60 mm, f/5.6, center G7, 60 mm, f/5.6, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh


The astigmatism, understood as an average difference between horizontal and vertical MTF50 function values, amounted to 4.3% so was slight.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Taking into account the fact that you deal here with a zoom lens we don’t have any reservations concerning out-of-focus areas. Only a lighter rim sticks out a bit but inside the circle the light spread is quite even. Mechanical vignetting is not bothersome either.

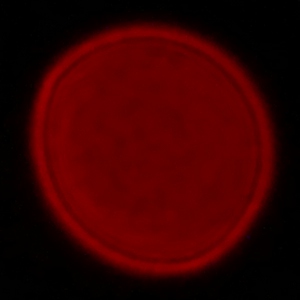

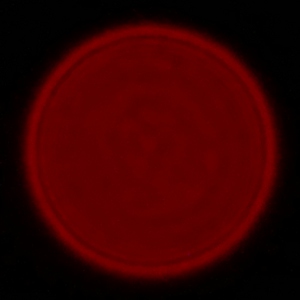

G7, 35 mm, f/5.2, center G7, 35 mm, f/5.2, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh

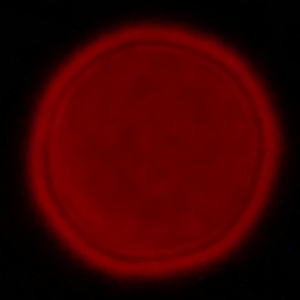

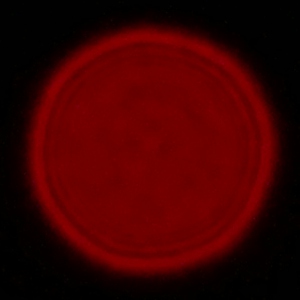

G7, 35 mm, f/7.2, center G7, 35 mm, f/7.2, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh

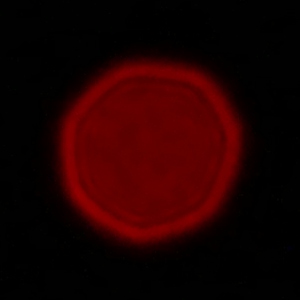

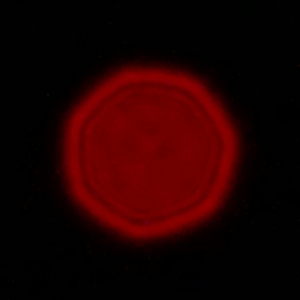

G7, 35 mm, f/10.0, center G7, 35 mm, f/10.0, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh

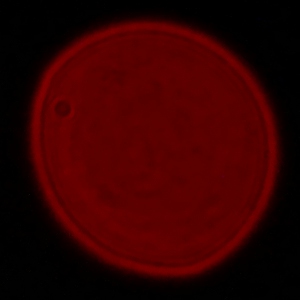

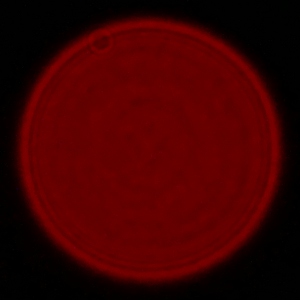

G7, 60 mm, f/5.6, center G7, 60 mm, f/5.6, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh

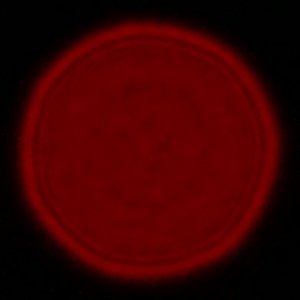

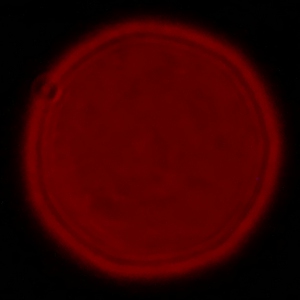

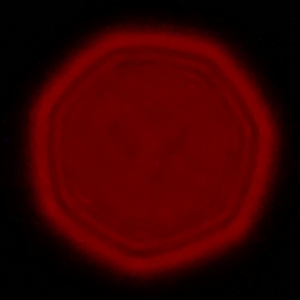

G7, 60 mm, f/8.0, center G7, 60 mm, f/8.0, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh

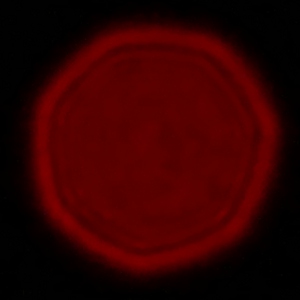

G7, 60 mm, f/11.0, center G7, 60 mm, f/11.0, corner
Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Lumix G 12-60 mm f/3.5-5.6 ASPH. POWER O.I.S. - Coma, astigmatism and bokeh
