LensTip.com

Lens review

Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO

21 February 2018
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below in order to assess the vignetting performance of the tested lens for JPEG files which were created with the help of the Olympus O-MD E-M5 Mark II.

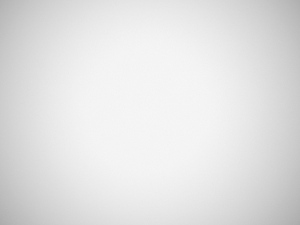

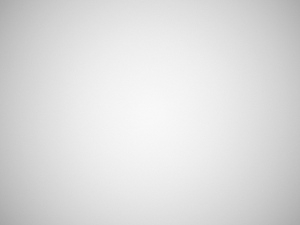

Olympus E-M5 II, f/1.2 Olympus E-M5 II, f/1.4
Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO - Vignetting Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO - Vignetting

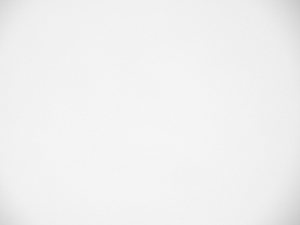

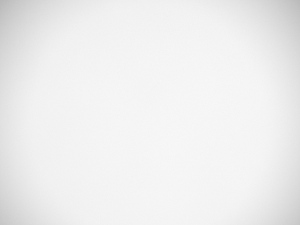

Olympus E-M5 II, f/2.0 Olympus E-M5 II, f/2.8
Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO - Vignetting Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO - Vignetting


At the maximum relative aperture the vignetting reaches 31% (-1.06 EV); it is not a high level if you take into account good aperture fastness of the lens. It’s enough to remind here that other equivalents of 85 mm devices had more significant brightness loss e.g. the Fujinon 1.2/56 lost 45% of light in the corners and full frame 85 mm f/1.4 instruments can have vignetting on a level of 50%. Also the Panaleica 1.2/42.5 fared weakly here with a result of as much as 54%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

On stopping down the aperture to f/1.4 the vignetting decreases to 28% (-0.96 EV). That aberration becomes just slightly bothersome already by f/2.0 and f/2.8 where it is, respectively, 21% (-0.69 EV) and 15% (-0.46 EV). The problem disappears completely by f/4.0 where the light fall-off in the frame corners amounts to a symbolic value of 8% (-0.26 EV).

As the lens has no distortion to correct the JPEG files don’t have to be noticeably cropped; as a result the RAW files vignetting level is, within the margin of error, the same as the JPEG files vignetting (with differences ranging from 0 to 2%).

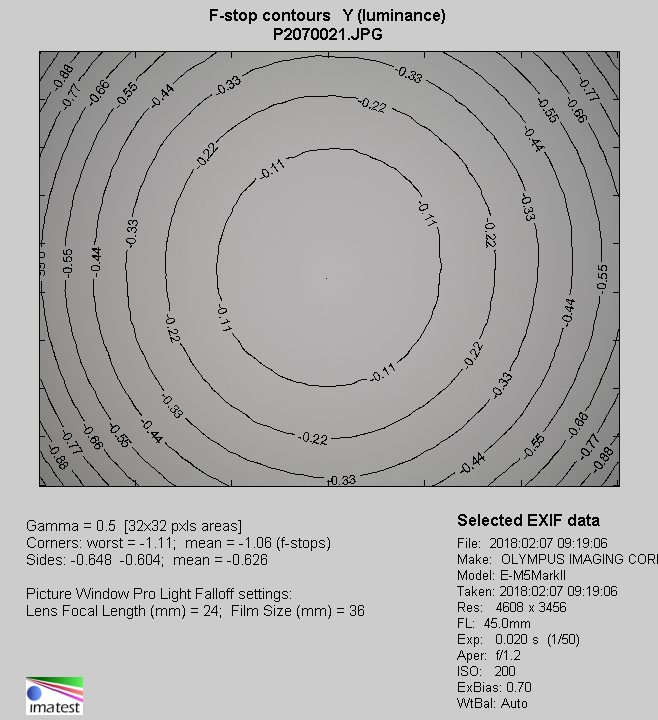

Olympus OM-D E-M5 Mark II, JPEG, f/1.2
Olympus M.Zuiko Digital ED 45 mm f/1.2 PRO - Vignetting
