Lens review

Nikon Nikkor Z 85 mm f/1.8 S

13 March 2020
Maciej Latałło

4. Image resolution

It's a beginning of our tests of the Nikon Z system lenses based on the Nikon Z7 body; the RAW files, produced by that camera were developped by neutral software such as dcraw. As we have been able to check thoroughly optical properties of several fixed focal length instruments of this system so far, we think we can determine proper reference levels. Lenses reaching record revels should be able to exceed 85 lpmm; maximum results of other excellent system prime lenses might fit the range from 80 to 85 lpmm. The decency level we set at 42–44 lpmm. Of course, while adding more Z system tests, we might need to correct these values a bit.

Let's see how the Nikkor Z 85 mm f/1.8 S compares – its results in the frame centre, on the edge of the APS-C/DX sensor, and on the edge of full frame presents a graph below.

Nikon Nikkor Z 85 mm f/1.8 S - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


When it comes to the frame centre the tested lens should only be praised. Already near the maximum relative aperture you deal with a good level of 55-58 lpmm which increases to 75 lpmm by f/2.8 and almost to 83 lpmm by f/4.0. These results are perhaps a tad weaker than in the case of the 1.8/50 model but, nevertheless, they can be called brilliant.

A comparison with other constructions of this type is once again favourable for the new Nikon lens. The reflex camera Nikkor AF-S 85 mm f/1.8G was very sharp on stopping down but by f/1.8 it barely managed to exceed decency level. The Sony 85 mm f/1.8 FE corrected its optical aberrations a tad weaker so it reached the peak of its possibilities only by f/5.6. The Tamron SP 85 mm f/1.8 Di VC USD seems to be the most formidable rival for the new Nikkor as it fared similarly well both at the maximum relative aperture and on stopping down.

If you look at the performance on the edge of the APS-C/DX sensor, the Nikkor Z 1.8/85 S provides many reasons to be happy as well. Already at the maximum relative aperture you deal with results close to 52 lpmm so safely above the decency level. A more significant stopping down allows the lens to reach almost 68 lpmm, a very high value.

The new Nikkor fares slightly better than its Nikon F mount predecessor and significantly better than the Sony FE 1.8/85 which, by f/1.8, experienced already some problems. Only the Tamron can win the duel with the Nikkor as, in its case, differences between the centre of the frame and the edges of the APS-C/DX sensor were distinctly less pronounced.

As the performance on the edge of full frame is not much different from the edges of the APS-C/DX once again we can be happy with the way the Nikkor Z 1.8/85 S fares. Most of all, we are pleased with the fact that the lens is able to offer a completely satisfying image sharpness up from the maximum relative aperture. It allows us to assess the tested lens notably higher than the Sony FE 1.8/85 as it experienced huge problems even on stopping down the aperture. The reflex camera Nikkor 1.8/85G had to be closed down to near f/2.2 in order to get images of acceptable quality. Once again only the Tamron seems to be able to compete with the new Nikkor on equal terms.

The summary of this part of the test can only be positive. The Nikkor Z 85 mm f/1.8 S doesn't have weak points as it is able to produce sharp images even by f/1.8 no matter what part of the frame you care to select. A perfect performance? Not really. If the differences between resolution in the centre and the edge of the frame were smaller we could call it so. Still, for a portrait lens it is not a serious flaw as edges of the frame often are well outside depth of field areas.

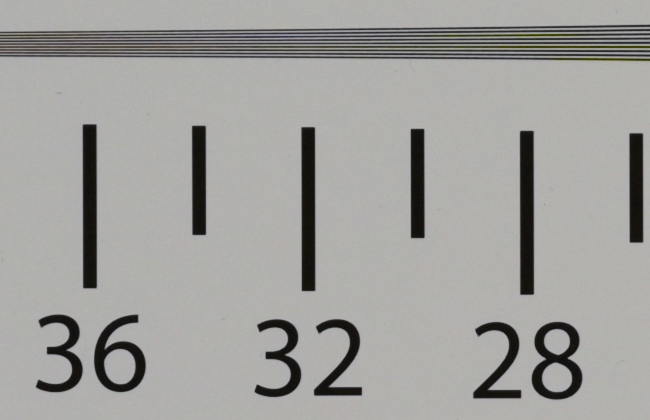

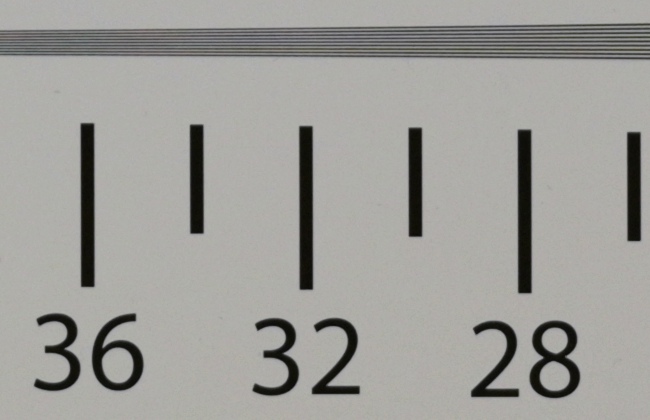

At the end of this chapter, traditionally, we present crops taken from photos of our resolution testing chart which were saved as JPEG files along the RAW files, used for the analysis above.

Nikon Z7, JPEG, f/1.8
Nikon Nikkor Z 85 mm f/1.8 S - Image resolution
Nikon Z7, JPEG, f/4.0
Nikon Nikkor Z 85 mm f/1.8 S - Image resolution
