8. Vignetting

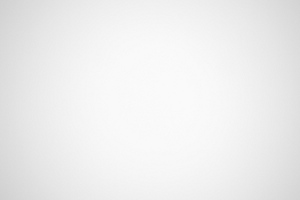

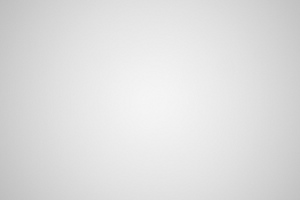

First let's check the performance on the smaller APS-C/DX sensor – appropriate thumbnails, reached in crop mode with the help of the Nikon Z7, can be found below.

Nikon Z7, APS-C/DX, f/1.8 Nikon Z7, APS-C/DX, f/2.0
Nikon Nikkor Z 85 mm f/1.8 S - Vignetting Nikon Nikkor Z 85 mm f/1.8 S - Vignetting


On the smaller detector you get some chances to notice vignetting only in the closest vicinity of the maximum relative aperture. By f/1.8 that aberration reaches a moderate level of 21% (−0.68 EV), by f/2.0 it decreases to 16% (−0.50 EV), and by f/2.8 it becomes practically imperceptible, dropping to a value of 4% (−0.12 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

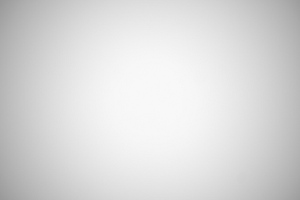

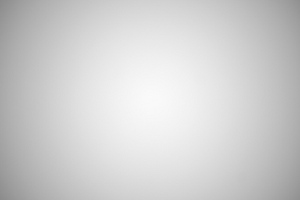

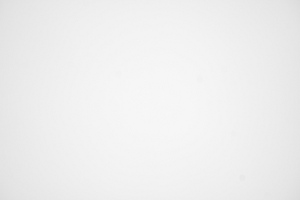

When you progress to the bigger full frame sensor there are more problems and photos below show them pretty well.

Nikon Z7, FF, f/1.8 Nikon Z7, FF, f/2.0
Nikon Nikkor Z 85 mm f/1.8 S - Vignetting Nikon Nikkor Z 85 mm f/1.8 S - Vignetting
Nikon Z7, FF, f/2.8 Nikon Z7, FF, f/4.0
Nikon Nikkor Z 85 mm f/1.8 S - Vignetting Nikon Nikkor Z 85 mm f/1.8 S - Vignetting


At the maximum relative aperture you have to take into account the loss of 43% of light in frame corners (−1.61 EV). It is a result exactly the same like in the case of the reflex camera predecessor but also noticeably better than the results of the Sony and the Tamron. In this category the tested lens shouldn't be criticised too harshly.

When you stop down the aperture to f/2.0 vignetting decreases to 37% (−1.35 EV), and by f/2.8 it drops to a moderate level of 19% (−0.62 EV). The aberration becomes practically imperceptible already by f/4.0 aperture, where we got a result of 10% (−0.32 EV).

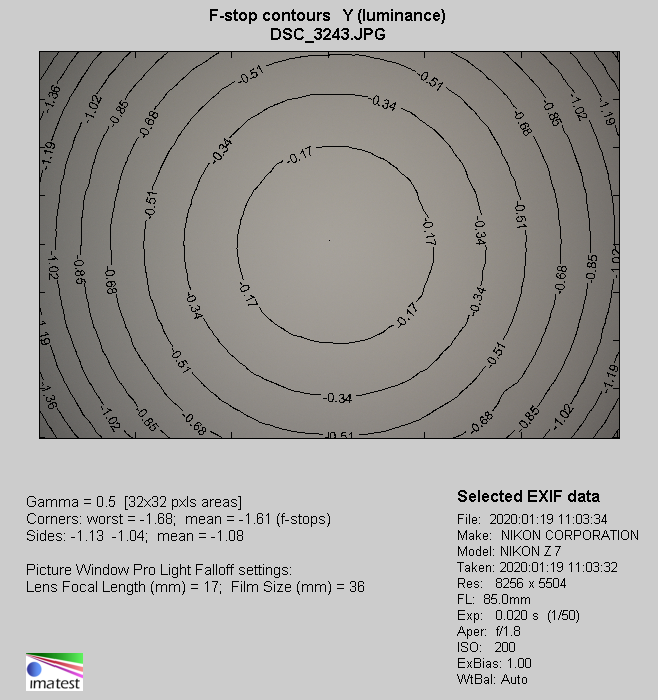

Nikon Z7, JPEG, f/1.8
Nikon Nikkor Z 85 mm f/1.8 S - Vignetting
Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value of every image, expressed in percents, shows an area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please, don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Nikon Nikkor Z 85 mm f/1.8 S - Vignetting

f/1.8 f/2 f/2.8 f/4
