LensTip.com

Lens review

Canon EF-S 10-22 mm f/3.5-4.5 USM

23 September 2007
Arkadiusz Olech

5. Chromatic aberration

The very wide angle lenses, where the light rays fall at a several dozen degree angle to the optic axis, often have a diagonal chromatic aberration. Therefore, no wonder that Canon used the UD glass in the EF-Sa 10-22 mm construction. The chart below, however, shows us that using just one UD glass is not enough.

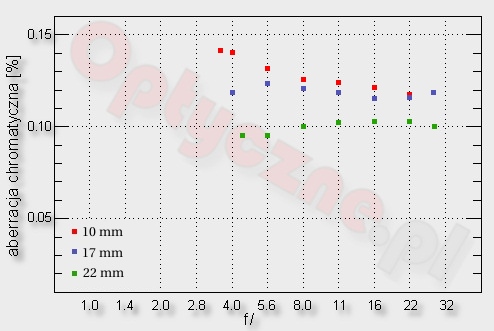

Canon EF-S 10-22 mm f/3.5-4.5 USM - Chromatic aberration

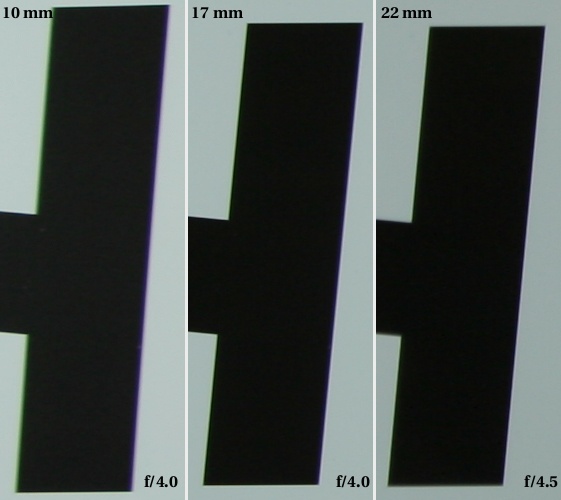

The chromatic aberration is clear, the biggest for a wide angle and at an acceptable level for 22 mm. Only for 10 mm and when stopping down the lens, does the aberration seem to decrease. For other focal lengths, chromatic aberration does not depend on the aperture used.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In summation, the Canon test results are at best, average, which should not be the case for a lens with a price of 689$.

Canon EF-S 10-22 mm f/3.5-4.5 USM - Chromatic aberration
