Panasonic G 20 mm f/1.7 ASPH. review - Vignetting

Have you rated your lenses yet?

Panasonic G 20 mm f/1.7 ASPH.

29 October 2010

Arkadiusz Olech

8. Vignetting

We were very curious about the results the tested lens gets in the vignetting category. On the one hand a small 4/3 sensor creates favourable conditions for correcting this aberration. On the other hand, though, we deal here with a combination of small dimensions of the lens, good fastness and a quite wide angle of view.

The thumbnails below allow us to assess the lens’s performance here.

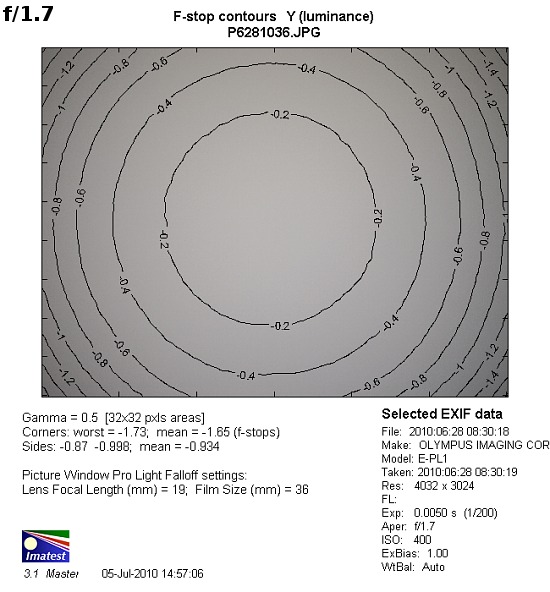

Panasonic G 20 mm f/1.7 ASPH. - Vignetting

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

You can say a small surprise awaits us in this category. The result the Panasonic 1.7/20 got here is perhaps the weakest of all 4/3 or Micro 4/3 lenses we’ve tested so far. At the maximum relative aperture the vignetting reaches quite high level of 44% (-1.65 EV). On slight stopping down to f/2.0 this aberration’s level decreases to 34%. By f/2.8 the vignetting is still visible and it amounts to 24%. Only by implementing f/4.0 and f/5.6 apertures we can reduce it to a not bothersome level of 16% and 13% respectively.
