Lens review

Nikon Nikkor AF 35 mm f/2D

1 June 2009
Arkadiusz Olech

8. Vignetting

Remembering the Canon 1.4/35 slip-up with vignetting, we were very curious how the Nikkor would fare in this category.

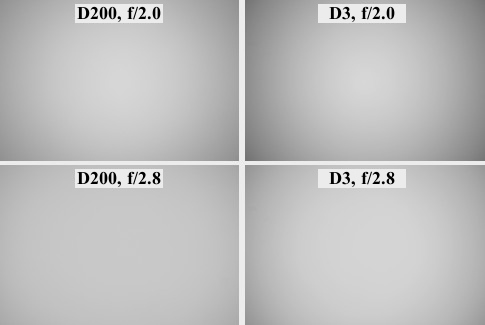

Nikon Nikkor AF 35 mm f/2D - Vignetting

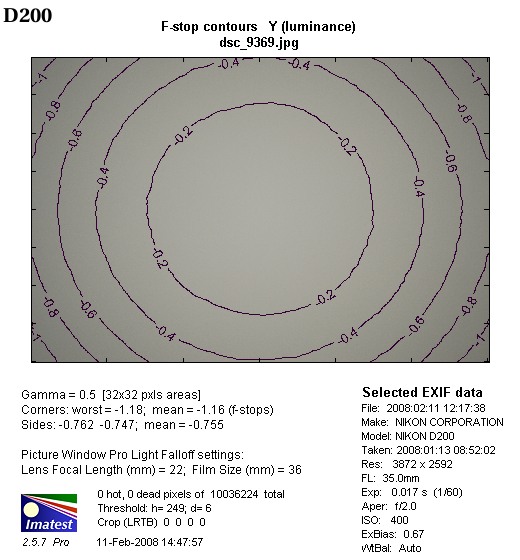

On the small Nikon D200 sensor at maximum relative aperture, the corner illumination loss was 33% (-1.16 EV) so quite a lot. Fortunately on stopping down to f/2.8 the vignetting decreases to 16% and it becomes imperceptible by f/4.0 (9%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

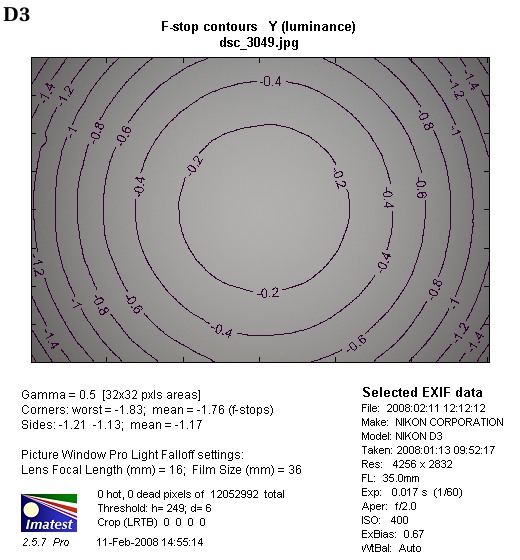

On full frame we expected a worse result. Luckily, it wasn’t a lot worse. By f/2.0 we lose 46% of corner illumination (-1.76 EV) and by f/2.8 – 30%. On stopping downto f/4.0 the vignetting decreases to the 21% level and by f/5.6 it reaches 15%. Only by f/8.0, though, we stop having any problems with it (10%).

Overall, the conclusions are not favorable for the Nikkor. The vignetting is visible even on a small detector and on full frame it increases significantly. Here the lens has to pay for its compact dimensions.


Nikon Nikkor AF 35 mm f/2D - Vignetting


Nikon Nikkor AF 35 mm f/2D - Vignetting
