LensTip.com

Lens review

Olympus Zuiko Digital 25 mm f/2.8

8 June 2009
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

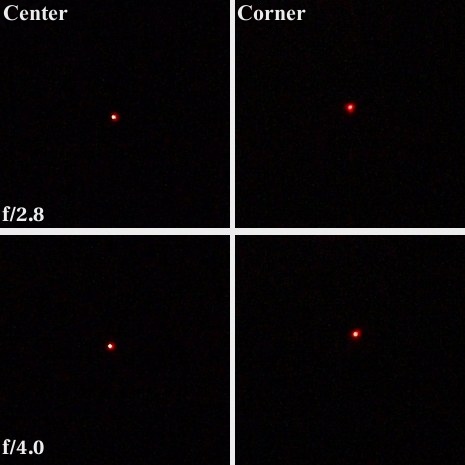

The influence of coma on the circular diode picture can be noticed. Because the coma is an off-axis aberration, there are no distortions in the frame center, but in the frame corner its influence, although slight, can be visible. It’s not a serious problem, though, nothing to worry about anyway.

Olympus Zuiko Digital 25 mm f/2.8 - Coma and astigmatism

We can say the same about the astigmatism. It’s level reaches 7% which is a good result.
