4. Image resolution

The lens was tested on a Sony Alfa 100 reflex camera. The pictures were saved in both RAW and JPEG formats. The RAW files were converted without sharpening to the loss-free TIFF format, where MTF50 values were measured. The results for the frame center are presented below.

Sony Carl Zeiss Vario-Sonnar T* DT 16-80 mm f/3.5-4.5 - Image resolution

You can immediately notice high consistency for all focal length range and a very good performance at maximum relative aperture, which is slightly worse for the maximum results by f/5.6. These maximum results, reaching 43 lpmm, are worth the praise in themselves. The best primes reach 45-46 lpmm, and here we deal with a 5x zoom lens after all.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Sony Carl Zeiss Vario-Sonnar T* DT 16-80 mm f/3.5-4.5 - Image resolution

Much bigger difference between wide open and f/5.6-8 apertures can be seen for the frame corners but it is very difficult to avoid for a zoom lens with a quite wide angle and a significant telephoto. On the other hand the frame corner results are very impressive, especially in the 16-50 mm range, where the MTF level is about 35-39 lpmm- you can hardly complain about it. At maximum aperture the performance is not so good but, as we are going to see in a moment, the chromatic aberration, which increases quickly on stopping down, limits this lens’s possibilities.

To sum up, the Zeiss 16-80 mm performance is one of the best in its class of universal lenses, tested by us. The resolution will meet the requirements of even a very demanding user.

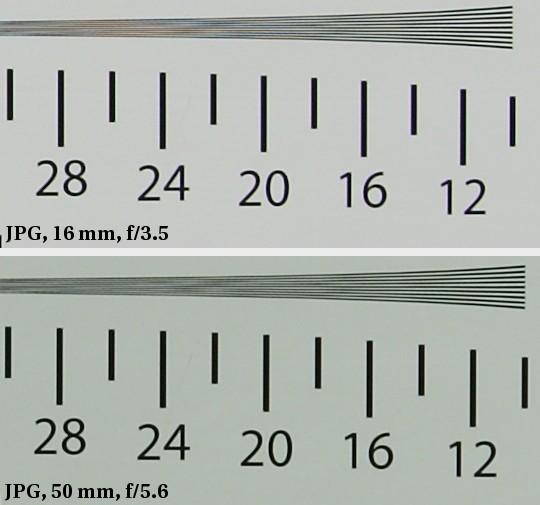

We finish with presenting the excerpts of the test charts of conventionally sharpened JPEG files.

Sony Carl Zeiss Vario-Sonnar T* DT 16-80 mm f/3.5-4.5 - Image resolution
