LensTip.com

Lens review

Nikon Nikkor AF-S DX 16-85 mm f/3.5-5.6G ED VR

2 October 2009
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

We happened to test several lenses with the focal length starting from 16 mm and all of them were tested on a 1.5x multiplier sensor. Just to remind you: a Tokina 16-50 mm at 16 mm had a –4.1% distortion, a Sony’s 16-105 mm distortion was even higher - as much as 4.7%. A Zeiss fared the best, presenting the result of – 4.0%.

The Nikkor 16-85 VR doesn’t stand out from its competitors here – at the widest angle it shows barrel distortion of the –4.15% value. On increasing focal length it falls really quickly and at 30 mm it reaches a close-zero level of 0.43%. After changing the sight, however, it starts to increase again: at 50 mm it amounts to 0.99% and at 85 mm – 1.05%.

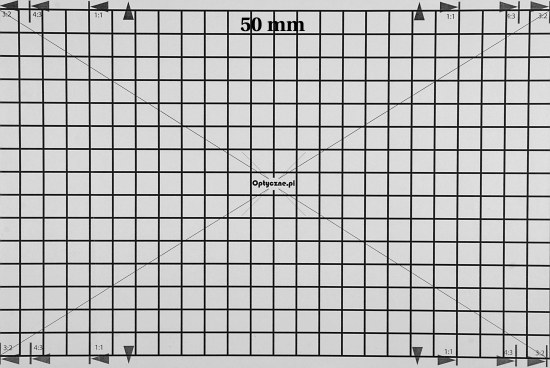

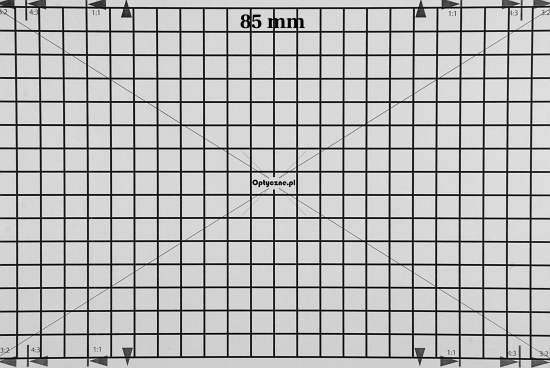

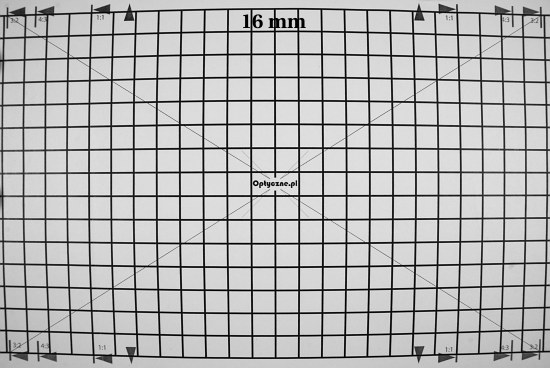

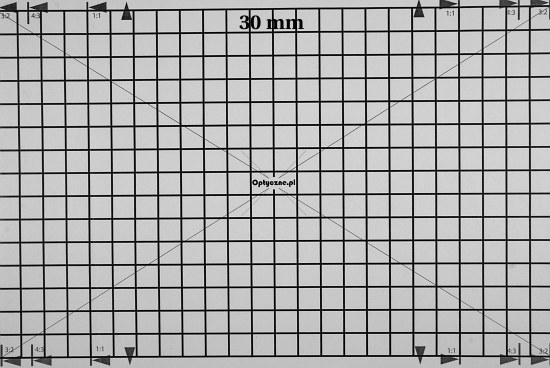

Nikon Nikkor AF-S DX 16-85 mm f/3.5-5.6G ED VR - Distortion

Nikon Nikkor AF-S DX 16-85 mm f/3.5-5.6G ED VR - Distortion

Nikon Nikkor AF-S DX 16-85 mm f/3.5-5.6G ED VR - Distortion

Nikon Nikkor AF-S DX 16-85 mm f/3.5-5.6G ED VR - Distortion
