LensTip.com

Lens review

Canon EF 55-200 mm f/4.5-5.6 II USM

30 September 2007
Arkadiusz Olech

5. Chromatic aberration

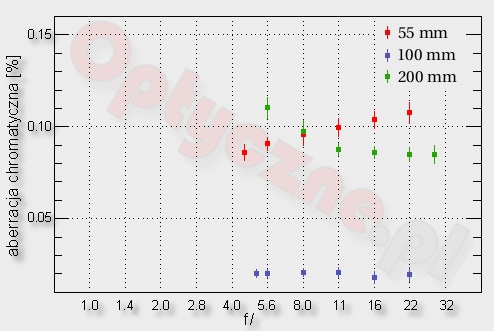

At the focal length range ends chromatic aberration is visible at the 0.10% level. At 55 mm the aberration increases slightly when the diaphragm value increases. At 200 mm the situation is the exact opposite.

Canon EF 55-200 mm f/4.5-5.6 II USM - Chromatic aberration


The chromatic aberration completely disappears at the 100 mm focal length, which is a very interesting characteristic for the Canon 55-200. When using a diaphragm, the aberration is at a 0.02% level. It is thanks to this feature that the picture resolution at the edges of the frame at 100 mm is so good.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

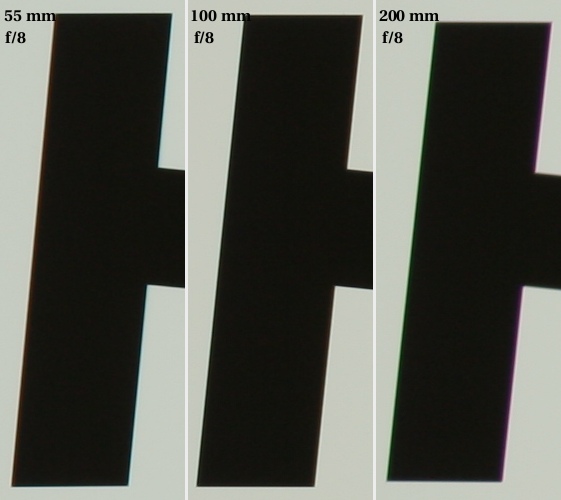

In the pictures below we present the ISO table 1:1 clippings set up 70% away from the center of the field of view. We can clearly see the high chromatic aberration at 55 and 200 mm and its absence at 100 mm.

Canon EF 55-200 mm f/4.5-5.6 II USM - Chromatic aberration
