LensTip.com

Lens review

Canon EF 55-200 mm f/4.5-5.6 II USM

30 September 2007
Arkadiusz Olech

8. Vignetting

The Canon 55-200 mm performs very well in this category. The reason could be its poor aperture. Even at open aperture the light fall off in the corners of the frame is never higher than 20%. A slight stopping down of the lens makes the vignetting results decrease to an acceptable level of 10%.

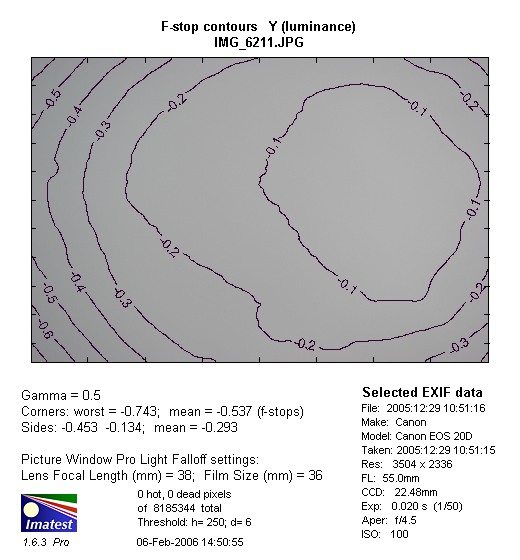

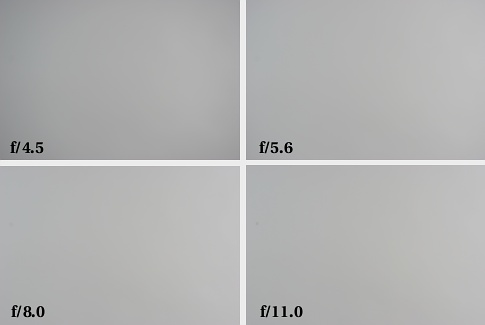

At 55 mm and f/4.5 the light fall off is 17% (0.54 the value of the diaphragm) and at f/5.6 it is only 9.9% and that is 0.30 the value of the aperture.

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

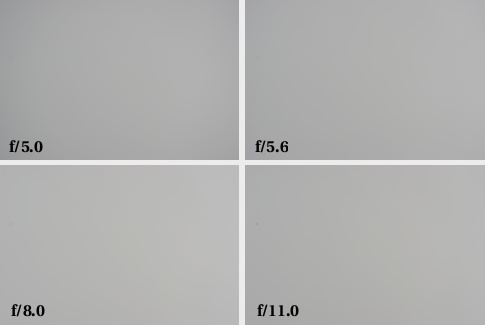

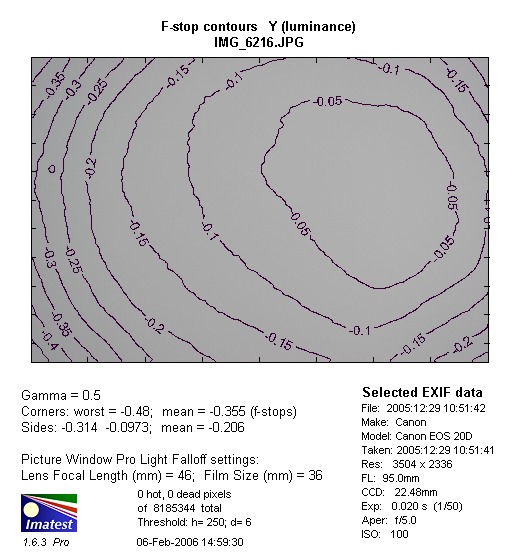

At 100 mm, and with the open aperture of f/5.0, the vignetting values are 11.5% (0.35 the value of the diaphragm) and at f/5.6 it is only 7.1% (0.22 the value of the diaphragm).

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting

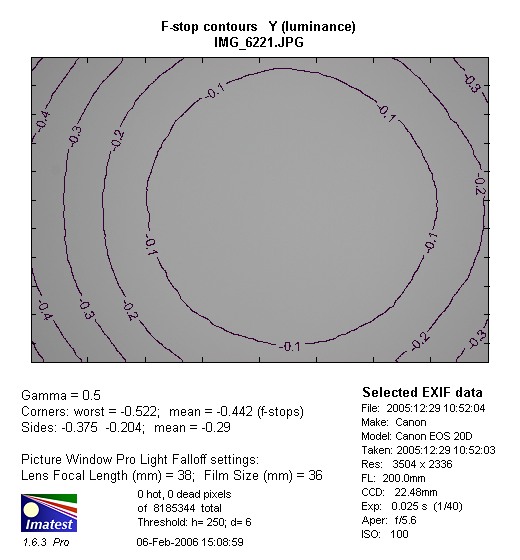

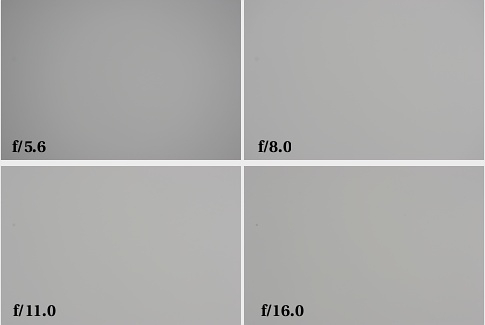

At the 200 mm focal length and f/5.6 the light fall off is 14.2% (0.44 the value of the diaphragm) and at f/8 it is only 5.5% (0.16 the value of the diaphragm).

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting

Canon EF 55-200 mm f/4.5-5.6 II USM - Vignetting
