LensTip.com

Lens review

Canon EF 100 mm f/2.8 Macro USM

23 October 2009
Arkadiusz Olech

4. Image resolution

Testing the EF 2.0/100 USM model we complained a bit about its weak maximum relative aperture performance. In the case of the 100 mm Macro such a situation doesn’t exist. The graph below shows that even by f/2.8 the image quality is excellent and the resolution reaches even 39 lpmm. It means the picture quality doesn’t limit us here and choosing an aperture we can be guided only by the required depth of field. From the maximum relative aperture to the sharpest f/5.6 aperture the resolution improves by just a few percent so it will be difficult to notice the difference.

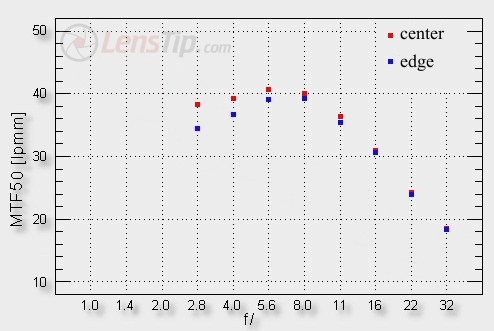

Canon EF 100 mm f/2.8 Macro USM - Image resolution

The frame edge performance deserves a lot of praise too. Even by f/2.8 the image quality is excellent there. In general, at all apertures the frame edge picture quality differs only slightly from that of the frame centre. A standing ovation!


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

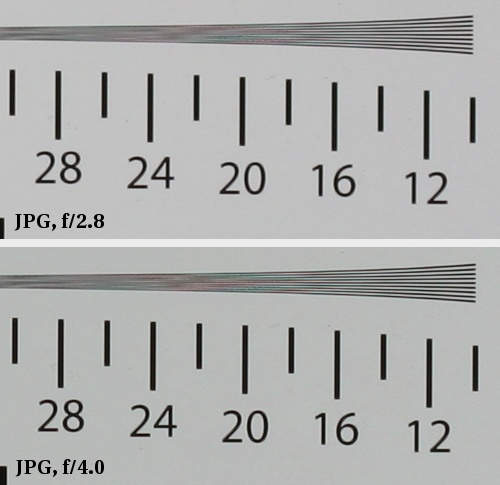

At the end of the chapter we present some of our test chart crops.

Canon EF 100 mm f/2.8 Macro USM - Image resolution
