LensTip.com

Lens review

Nikon Nikkor AF-S DX 55-200 mm f/4-5.6G IF-ED VR

6 November 2009
Arkadiusz Olech

8. Vignetting

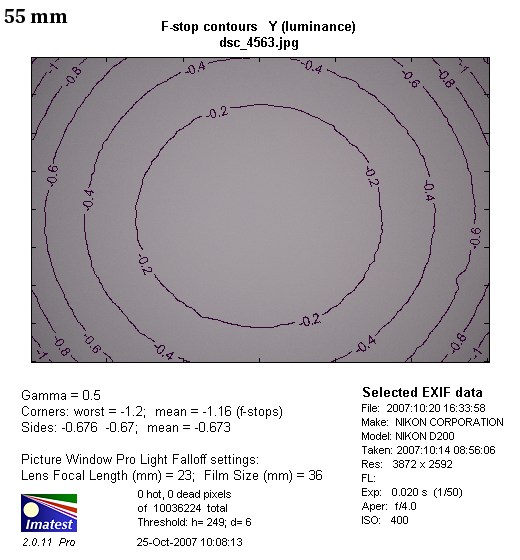

The lens without stabilization had weak results in this category. It’s younger brother doesn’t fare better. At 55 mm and by f/4.0 the corner light fall-off amounted to as much as 33% (-1.16 EV). On stopping down to f/8 the vignetting decreased to 19% but only by f/11 it reached an imperceptible level (8%).

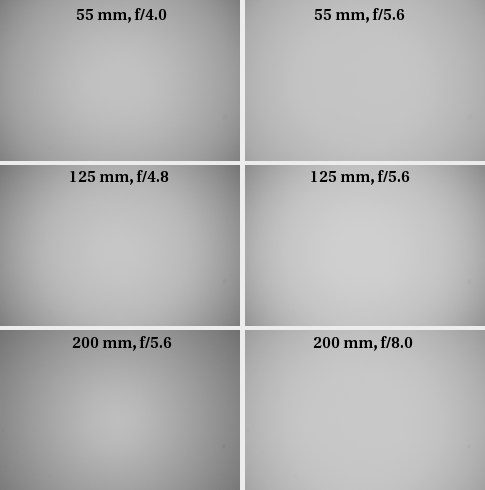

Nikon Nikkor AF-S DX 55-200 mm f/4-5.6G IF-ED VR - Vignetting

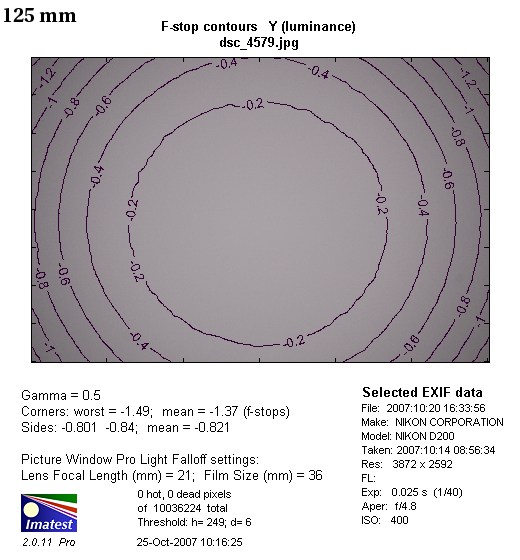

In the middle of the focal lengths range the situation is even worse. By f/4.8 the brightness loss in the frame corners is as much as 38% (-1.37 EV) By f/5.6 it decreases to 30%, by f/8.0 it drops further to 12% and only by f/11 it becomes negligible (4%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

At 200 mm the results are not good either. At the maximum relative aperture the vignetting amounts to 37% (-1.35 EV) and by stopping down to f/8.0 it decreases to 20%. Only usage of f/11 makes the problem disappear completely (3%).

Nikon Nikkor AF-S DX 55-200 mm f/4-5.6G IF-ED VR - Vignetting

Nikon Nikkor AF-S DX 55-200 mm f/4-5.6G IF-ED VR - Vignetting

Nikon Nikkor AF-S DX 55-200 mm f/4-5.6G IF-ED VR - Vignetting
