7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

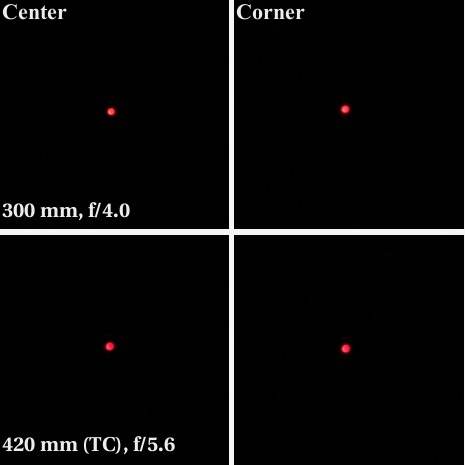

Such crops, as those shown below, we would like to see more often. They prove that the coma is well corrected, also after connecting to the converter.

Canon EF 300 mm f/4L IS USM - Coma and astigmatism

When it comes to astigmatism the situation is a bit different, though. As long as we don’t use the converter, the performance is ideal because the average difference between vertical and horizontal MTF50 values amounts to only 3.5%. Unfortunately after connecting to the converter the astigmatism level increases rapidly and reaches as much as 16%. Such a performance is often observed and typical for situations when we have to join two optical systems – such an operation always can result in minimal slacks or deviations of optics elements.
