Lens review

Canon EF 50 mm f/1.4 USM

15 December 2009
Arkadiusz Olech

8. Vignetting

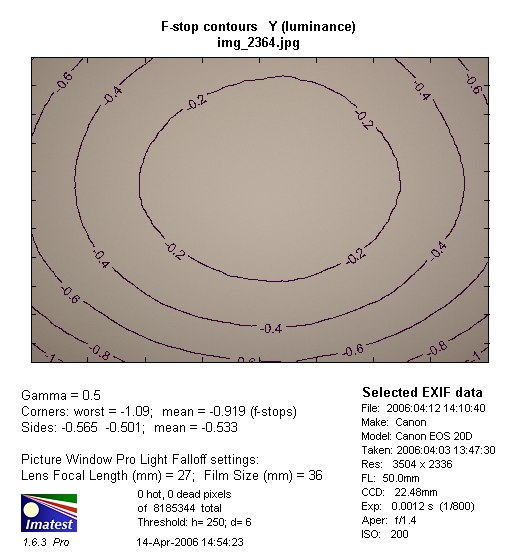

When wide open, the vignetting problem is serious because the brightness loss in the corners amounts to 27%. We must immediately add that the result was reached on the Canon 20D so on the sensor 1.6 smaller than the 35 mm film frame the tested lens was designed for. We can expect that on full frame the vignetting at the maximum aperture will be huge indeed. How huge exactly it remains to be seen in the following part of this chapter.

Canon EF 50 mm f/1.4 USM - Vignetting

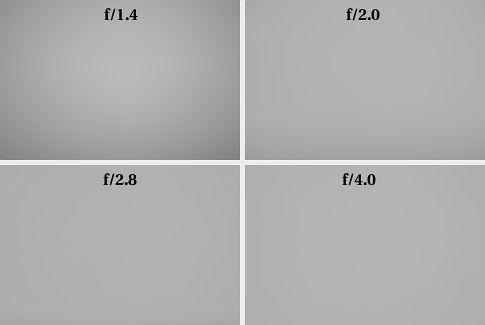

Fortunately there are some good news too. On stopping down to f/2.0 the light fall-off in the corners is just 10% and by f/2.8 – less than 5%. The situation is significantly better than that of a Canon 1.8/50 II which, by f/2.0, had the vignetting at the level of 20%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Canon EF 50 mm f/1.4 USM - Vignetting

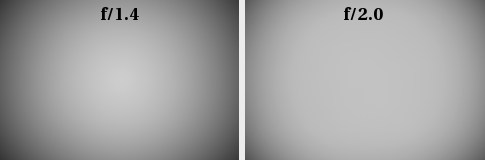

Let’s raise the standards and see what the situation looks like on the full frame.

Canon EF 50 mm f/1.4 USM - Vignetting

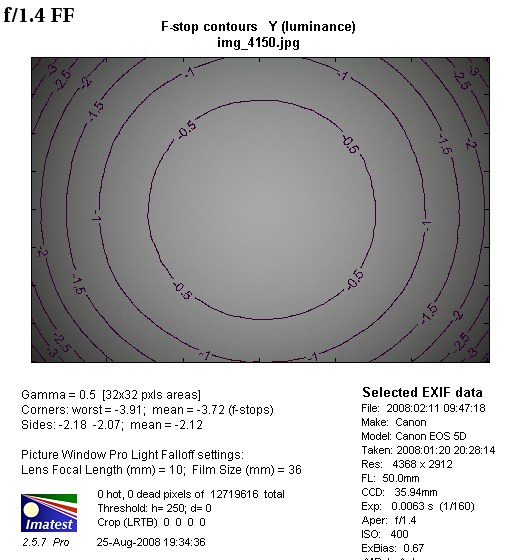

As we expected at the beginning – it is truly bad. At the maximum relative aperture the Canon 1.4/50 loses as many as 72% of light (- 3.7 EV). On stopping down to f/2.0 the situation improves significantly but the problem still remains big because it reaches 53% of light fall-off. Even the f/2.8 aperture doesn’t guarantee the full comfort of work because the light fall-off still amounts to 30% there. Only by f/4.0 and f/5.6, with the results of 15% and 11% respectively, we can be sure we get pictures with the vignetting level not very bothersome or even invisible.

Canon EF 50 mm f/1.4 USM - Vignetting
