LensTip.com

Lens review

Nikon Nikkor AF-S DX 18-55 mm f/3.5-5.6G VR

19 February 2010
Arkadiusz Olech

8. Vignetting

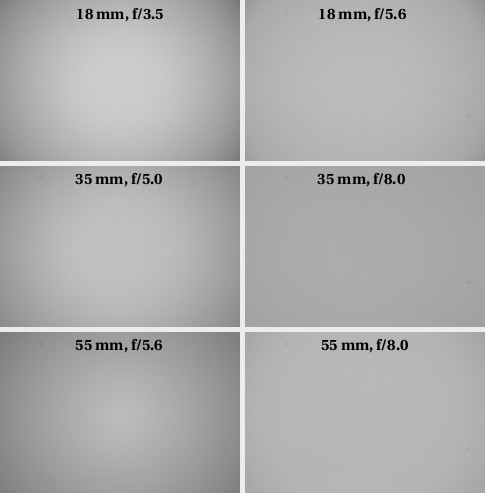

Huge vignetting is a problem for Nikkon’s „kits”. At the shortest focal length the older “kit” lens had as much as 40% of light fall-off in the frame corners. In the stabilized “kit” practically nothing changed because the brightness loss, measured by us, reached 39% (-1.45 EV). By using f/4.0 aperture it decreased to 32% and by f/5.6 it reached the level of 20% and, finally, by f/8.0 it amounted to 13%.

Nikon Nikkor AF-S DX 18-55 mm f/3.5-5.6G VR - Vignetting


In the middle of the focal lengths’ range and at the maximum relative aperture the vignetting is 29% (-0.98 EV). On stopping down to f/5.6 that aberration decreases to 20% and by f/8.0 it disappears completely (6%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

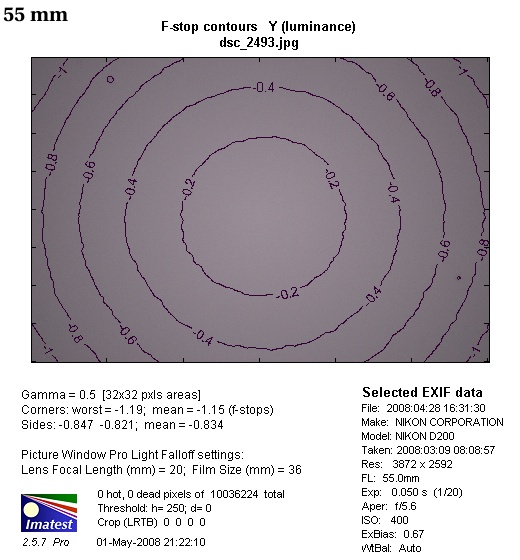

An unpleasant change happens at the longest focal length. The predecessor had here a result of 19% and the new “kit” reaches as much as 33% (-1.15 EV). Fortunately on using f/8.0 the vignetting decreases to an imperceptible level of 10%.


Nikon Nikkor AF-S DX 18-55 mm f/3.5-5.6G VR - Vignetting


Nikon Nikkor AF-S DX 18-55 mm f/3.5-5.6G VR - Vignetting


Nikon Nikkor AF-S DX 18-55 mm f/3.5-5.6G VR - Vignetting
