LensTip.com

Lens review

Samyang 14 mm f/2.8 ED AS IF UMC

20 April 2010
Szymon Starczewski

8. Vignetting

As it was the case of the older version on a small sensor, the vignetting won’t be very bothersome. At the maximum relative aperture the brightness loss in the frame corners is 34% (-1.19 EV) and for such a wide angle this result is not bad. Especially that on stopping down to f/4.0 the vignetting decreases to almost imperceptible level of 13% and by f/5.6 it disappears completely (10%).

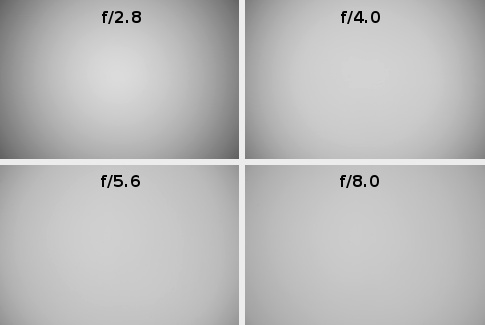

Samyang 14 mm f/2.8 ED AS IF UMC - Vignetting


More problems occurred on full frame where the vignetting reached 59% by f/2.8. We expected some improvement here and we noticed it. The redesigned lens at maximum aperture has the light fall-off amounting to 55% (-2.31 EV). Such a result is perhaps not significantly better but still.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

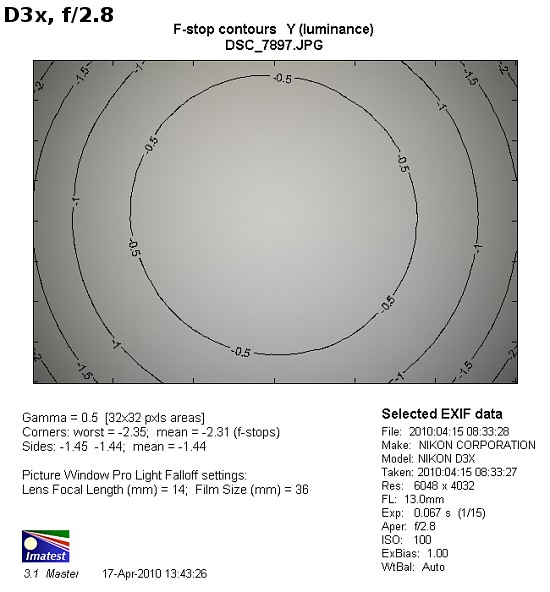

Samyang 14 mm f/2.8 ED AS IF UMC - Vignetting


On stopping down to f/4.0 the vignetting decreases to 39% and by f/5.6 it reaches 29%. On further stopping down we can see very slight improvement. By f/8.0 the vignetting is 24% and by f/11 – just 2% less. By f/16 we must still take into account the light fall-off reaching 20% in the corners. After all, such is the usual performance of a wide angle device on full frame…

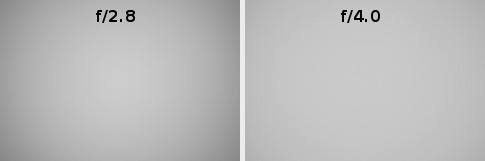

Samyang 14 mm f/2.8 ED AS IF UMC - Vignetting
