6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The 28 mm focal length on full frame gives us a quite significant angle of view, reaching 75 degrees. It is exactly the same angle we get at the shortest focal lengths with standard zoom lenses, which are usually a part of our reflex camera’s kit. In their case, the distortion often amounts to –4 or even –5%. With even greater satisfaction we notice the fact that on full frame the Canon 1.8/28 had barrel distortion which level we measured as – 1.85%. Such a value is noticeable but certainly not bothersome. The rival Sigma 1.8/28 had the result a bit lower –1.63%.

After limiting the lens’s angle of view to less than 52 degrees by attaching it to the APS-C sensor camera, the distortion decreased to the level of –1.19%.

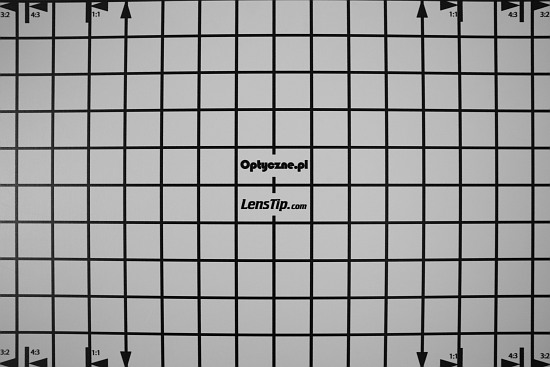

Canon EOS 1Ds Mark III, 28 mm
Canon EF 28 mm f/1.8 USM - Distortion

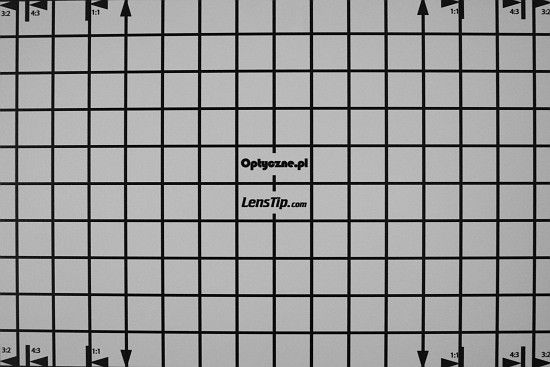

Canon EOS 50D, 28 mm
Canon EF 28 mm f/1.8 USM - Distortion
