LensTip.com

Lens review

Canon EF 28 mm f/1.8 USM

6 July 2010
Arkadiusz Olech

7. Coma and astigmatism

The Canon EF 28 mm f/1.8 USM can be quoted as a textbook example of coma. The change of the point source of light is really impressing. At the maximum aperture the coma is clearly visible even in the APS-C sensor’s corner and in the corner of the full frame sensor it becomes simply monstrous. The situation improves swiftly on stopping down the aperture by one stop. The APS-C corner coma stops being bothersome then but in the full frame corner it remains still huge.

The rival Sigma 1.8/28 had also quite big coma but it wasn’t as big as in the case of the Canon.

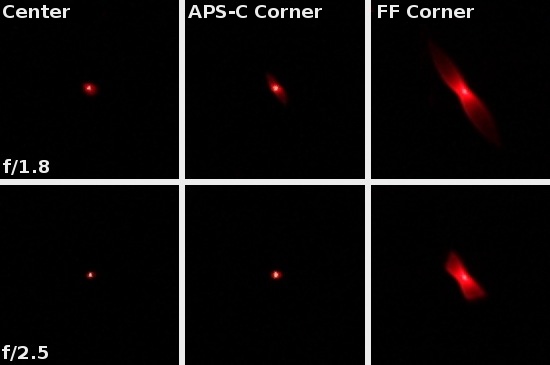

Canon EF 28 mm f/1.8 USM - Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The astigmatism is corrected a lot better than the coma but it is still far from perfect. The average difference between horizontal and vertical MTF50 function values amounted to 13% - a medium result which is a bit better than 16% we got in the case of the Sigma 1.8/28.
