LensTip.com

Lens review

Olympus Zuiko Digital ED 14-35 mm f/2.0 SWD

30 August 2010
Arkadiusz Olech

8. Vignetting

The next interesting category in the case of the 4/3 system is vignetting. Usually 4/3 lenses outclass here any full frame competition. Let’s remind here that, for example, the Sigma 24-70 mm f/2.8 on full frame could lose as much as 50% of light in the frame corners. Now, have a look at the performance of the Olympus 14-35 mm.

Olympus Zuiko Digital ED 14-35 mm f/2.0 SWD - Vignetting

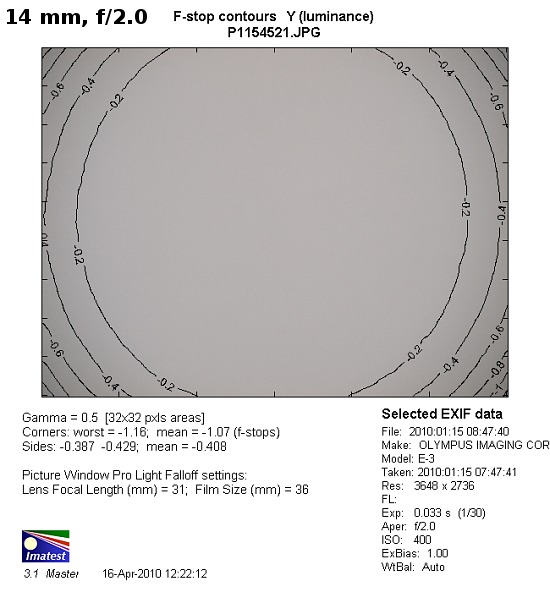

Despite dealing here with the excellent f/2.0 fastness, at the shortest focal length the vignetting reaches 31% (-1.07 EV). It is a noticeable value but, taking into account the angle of view we get here and the aperture, this result can’t be criticized. Especially that after using f/2.8, the vignetting decreases to 16% and by f/4.0 it is as low as 10% - a truly imperceptible level.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

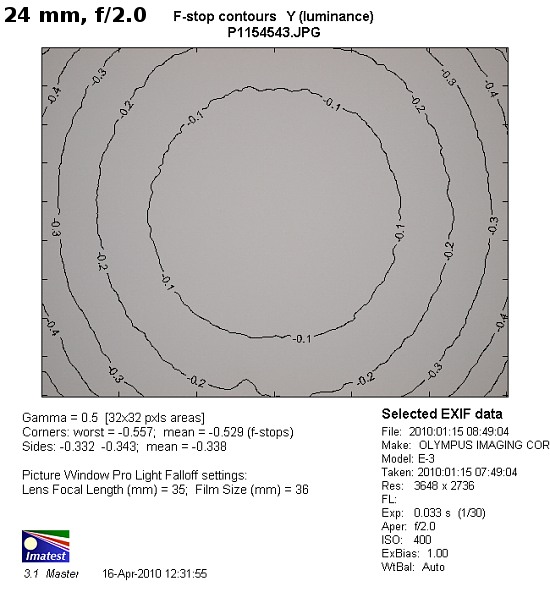

In the middle of the focal lengths range the vignetting won’t be bothersome at all. At the maximum aperture it amounts to 17% (-0.53 EV) and it decreases to only 8% on stopping down the lens to f/2.8.

The light fall-off in the frame corners increases slightly at the maximum aperture but also there it is not especially bothersome. By f/2.0 the vignetting is 25% (-0.85 EV) and it decreases to an imperceptible value of 10% by f/2.8.


Olympus Zuiko Digital ED 14-35 mm f/2.0 SWD - Vignetting

Olympus Zuiko Digital ED 14-35 mm f/2.0 SWD - Vignetting

Olympus Zuiko Digital ED 14-35 mm f/2.0 SWD - Vignetting
