LensTip.com

Lens review

Panasonic G 20 mm f/1.7 ASPH.

29 October 2010
Arkadiusz Olech

6. Distortion

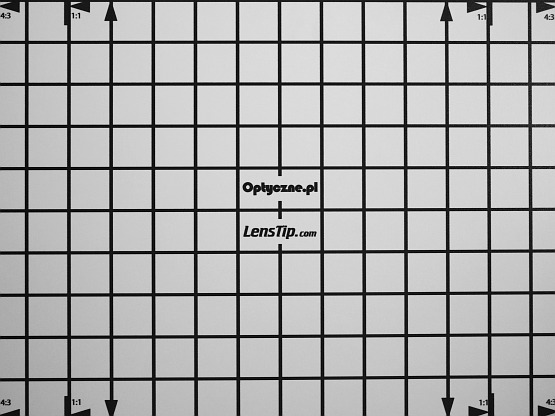

When we look at JPEG files shot on the Panasonic G2 or the Olympus E-PL1 with the Panasonic 1.7/20 attached, it seems that the distortion problem is simply negligible. The measurements confirm it, indicating a minimal barrel distortion, which level we measured as –0.25%.

Panasonic G 20 mm f/1.7 ASPH. - Distortion

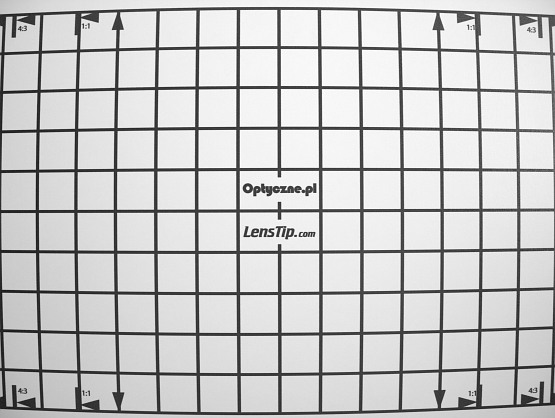

The situation changes diametrically if you see RAW files developed by a neutral program. For such parameters the optics generates very high barrel distortion of –3.66%. In the case of a lens which aspires to be a standard device we would be able to forgive a distortion level of –1.5% at most. The result of – 3.66% deserves a lot of criticism.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Panasonic G 20 mm f/1.7 ASPH. - Distortion

The tests of other Micro 4/3 system lenses show that the optics constructors of Olympus and Panasonic eased up on the distortion correction. They assumed, and they were quite right by the way, that such an aberration can be corrected easily by different programs. We must keep in mind, though, what price is to be paid. The distortion-corrected image is cropped afterwards and it causes the reduction of the field of view, sometimes quite significant. However, in the case of the Panasonic 1.7/20 such price is low because a slight narrowing of the field of view makes the lens even more similar to the standard full frame 50 mm device. If you want to be honest you must also mention the advantages of such a solution. A typical lens project is always a kind of compromise between physical dimensions, price and the quality of optics in terms of correcting basic optical aberrations. When we ease up on the distortion correction completely we get additional degree of freedom so to speak, which can be used to correct other aberrations more efficiently or to lower the price and dimensions of a lens. There’s some logic in such a move, especially if you take into account the fact that most of amateur photographers who take photos in JPEG format, will never guess that their camera corrects the lens’s distortion automatically and because of that the field of view is narrower than that given in the lens’s specifications.
