LensTip.com

Lens review

Nikon Nikkor AF 24 mm f/2.8D

1 March 2011
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

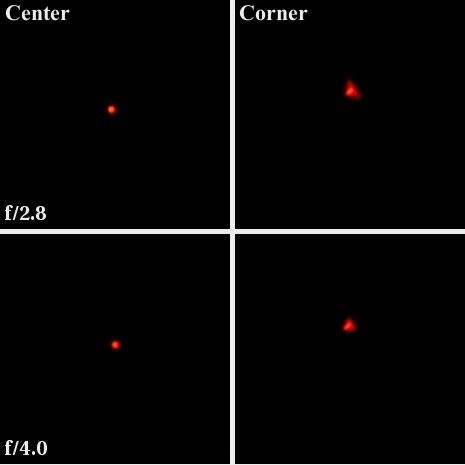

The coma correction also falls short of our expectations. At the maximum relative aperture it is very distinct and it doesn’t disappear even on stopping down to f/4.0. In these both cases the level of this aberration is even higher than that of the 20 mm lens.

Nikon Nikkor AF 24 mm f/2.8D - Coma and astigmatism

Fortunately in the case of astigmatism the situation is better. Here the difference between horizontal and vertical MTF50 function value, measured in the frame centre, reached just 4.4% which is a result befitting a good prime instrument.
