LensTip.com

Lens review

Nikon Nikkor AF-S 24 mm f/1.4G ED

20 April 2011
Arkadiusz Olech

8. Vignetting

Vignetting was the Canon’s 1.4/24 huge problems – on the smaller sensor it reached –1.2 EV and on full frame it got to a record-breaking value of –4.4 EV. For obvious reasons fast and wide-angle lenses don’t have an easy task in this category so we were even more curious how the Nikkor 1.4/24 would fare here. Let’s check its performance on a smaller sensor of the Nikon D200 first.

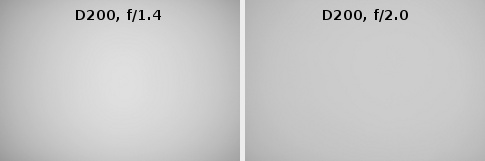

Nikon Nikkor AF-S 24 mm f/1.4G ED - Vignetting


The result is a bit better than that of the Canon because at the maximum relative aperture the brightness loss in the frame corners amounted to 29% (-0.98% EV). The problem disappears completely on further stopping down because by f/2.0 and f/2.8 the vignetting is 12% and 7% respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

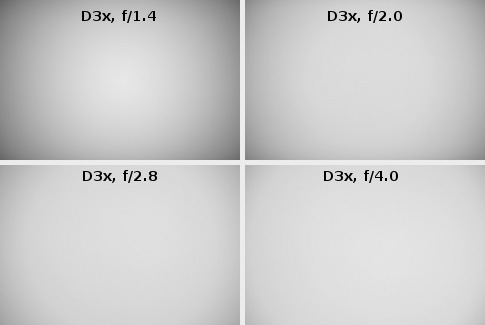

The performance on full frame is of course the most serious test. Below you can see the result presented in form of test photos.

Nikon Nikkor AF-S 24 mm f/1.4G ED - Vignetting


Although the vignetting is high the Nikkor fares much better than the Canon. At the maximum relative aperture the light fall-off in the frame corners is 54% (-2.25 EV). On stopping down to f/2.0 there is a significant improvement but still the vignetting remains on a huge level of 38% (-1.37 EV). The aberration remains visible by f/2.8 and f/4.0 as well, amounting to 25% and 19% respectively. Only by implementing f/5.6 we can make the problem insignificant (13%).

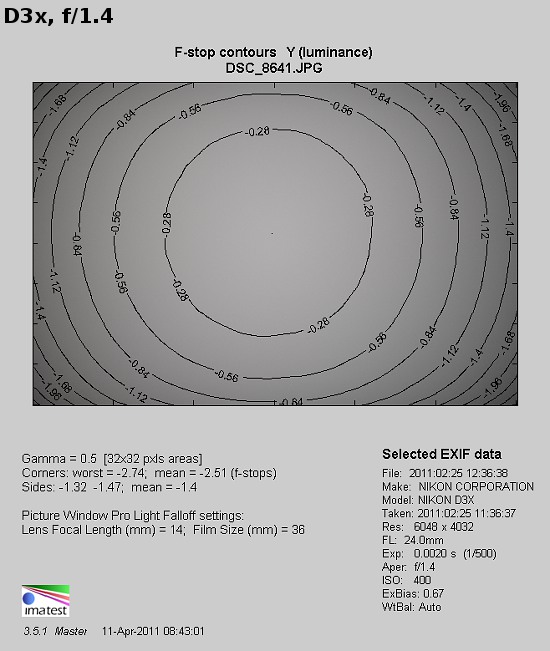

Nikon Nikkor AF-S 24 mm f/1.4G ED - Vignetting
